SNMPW041008JD4KSSD - WIMA

Description: Film Capacitors 1uF 10% 3000V Snubber MKP Capacitors for Pulse Applications with Double-Sided Metallized Electrodes, Schoopage Contacts and Internal Series Connection

Download SNMPW041008JD4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SNMPW041008JD4KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

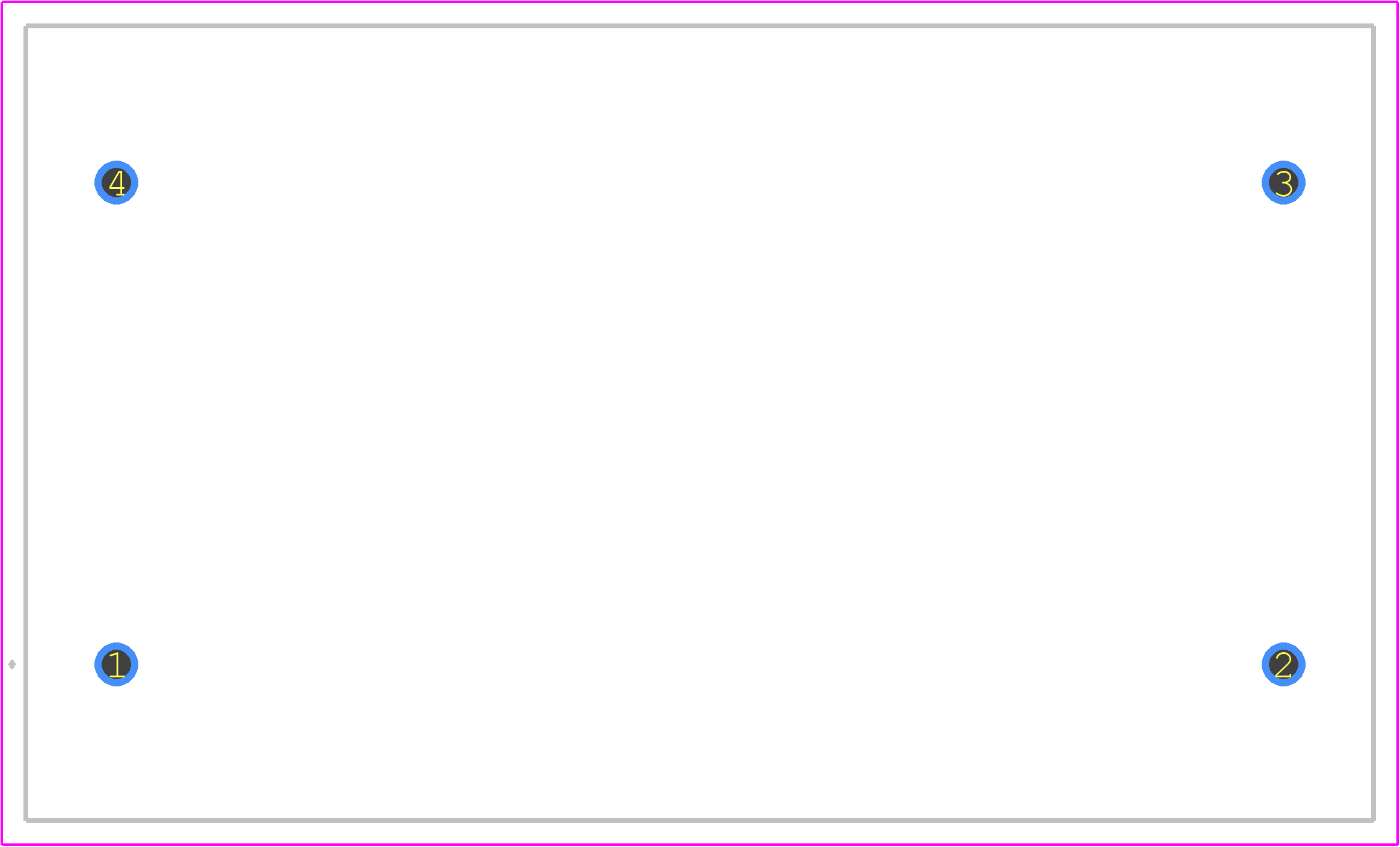

SNMPW041008JD4KSSD - WIMA PCB footprint - Other - Other - SNMPW041008JD4KSSD-4
click to zoom
3D Models
SNMPW041008JD4KSSD - WIMA - 3D model - Other - SNMPW041008JD4KSSD-4
click to zoom

SNMPW041008JD4KSSD Details

  • Manufacturer Part Number:

    SNMPW041008JD4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.87

  • Capacitance:

    1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    48 mm

  • JESD-609 Code:

    e3

  • Length:

    56 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    700 V

  • Rated (DC) Voltage (URdc):

    3000 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    33 mm
