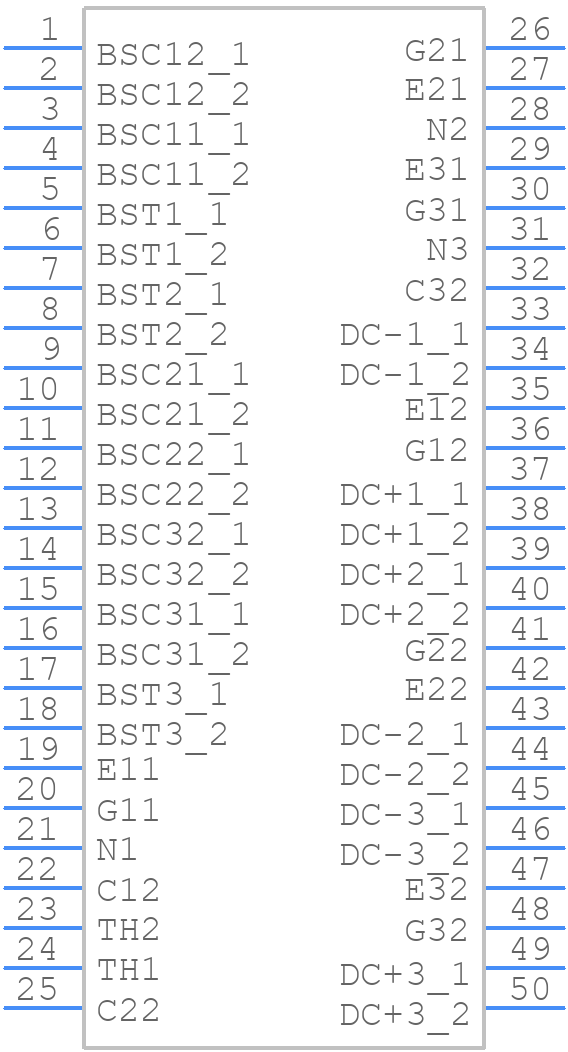

SNXH600B100H4Q2F2S1G-S - onsemi

SNXH600B100H4Q2F2S1G-S Details

• Manufacturer Part Number:

  SNXH600B100H4Q2F2S1G-S

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

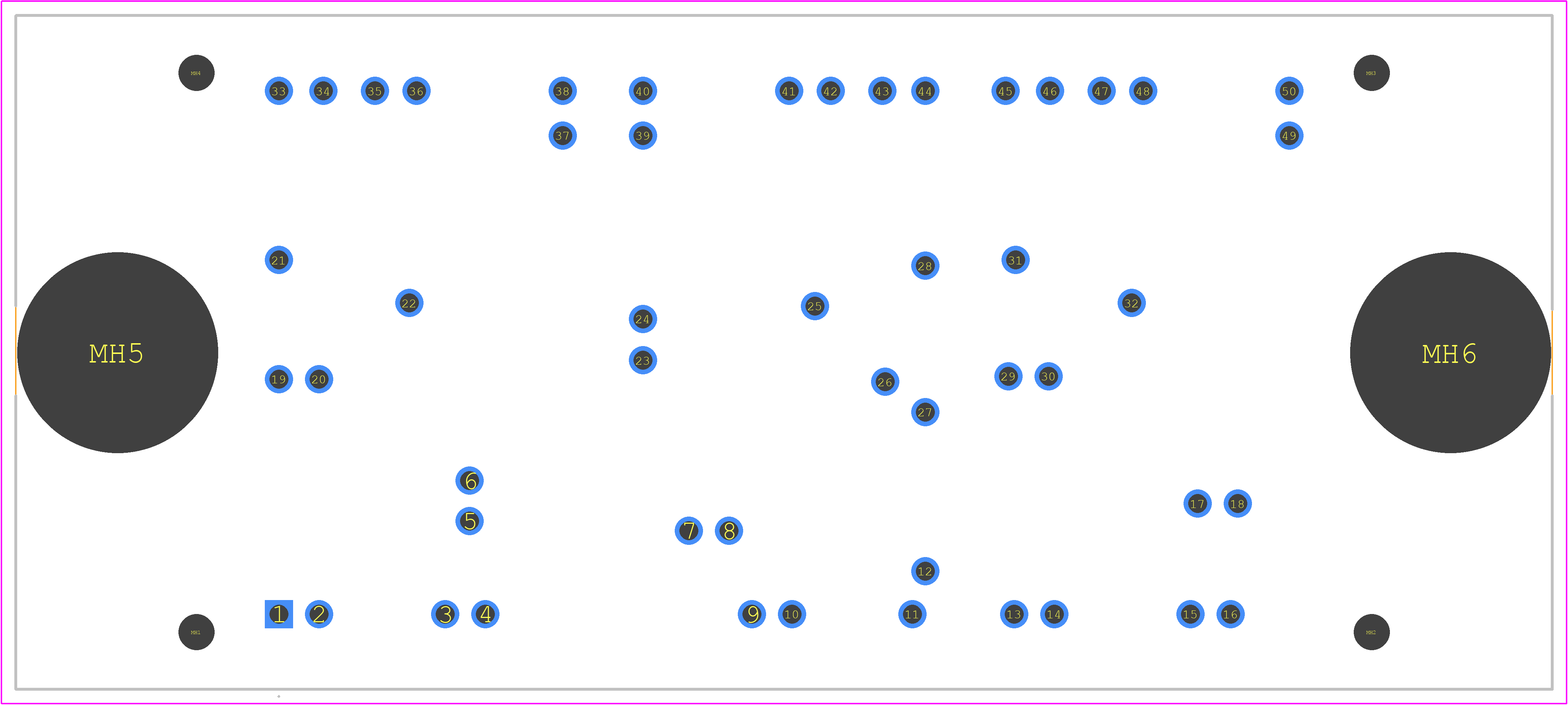

  PIM56, 93x47 (SOLDER PIN)

• Manufacturer Package Code:

  180BK

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  5.35

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  173 A

• Collector-Emitter Voltage-Max:

  1000 V

• Configuration:

  3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

• Gate-Emitter Thr Voltage-Max:

  6 V

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X50

• JESD-609 Code:

  e3

• Number of Elements:

  6

• Number of Terminals:

  50

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TRAY

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  422 W

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  641.42 ns

• Turn-on Time-Nom (ton):

  149.83 ns

• VCEsat-Max:

  2.3 V
