SP-2G1+ - Mini-Circuits

Description: Signal Conditioning 2 Ways MMIC DC Pass Power Splitter, 1200 - 2000 MHz, 50 ohms

Download SP-2G1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

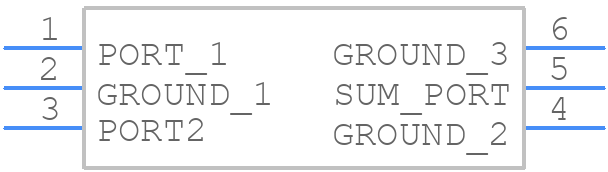

SP-2G1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SP-2G1+ - Mini-Circuits PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SP-2G1+
click to zoom
3D Models
SP-2G1+ - Mini-Circuits - 3D model - SOT23 (6-Pin) - SP-2G1+
click to zoom

SP-2G1+ Details

  • Manufacturer Part Number:

    SP-2G1+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CA531

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.98

  • Additional Feature:

    ISOLATION-MIN (DB):20

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.3 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.5

SP-2G1+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the SP-2G1+. It's recommended to use a solid ground plane, and to connect the device's ground pins to the ground plane using vias. The input and output tracks should be kept as short as possible and shielded from the surrounding environment.
  • The SP-2G1+ requires a bias voltage of 5V and a bias current of 100mA. Ensure that the bias voltage is well-regulated and noise-free, and that the bias current is limited to prevent overheating.
  • The SP-2G1+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Common issues with the SP-2G1+ can be caused by improper biasing, poor PCB layout, or inadequate heat sinking. Check the bias voltage and current, ensure proper grounding, and verify that the device is properly heat-sunk. If issues persist, consult the application notes or contact Mini-Circuits support.
  • Yes, the SP-2G1+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper balancing and stability.
