Littelfuse provides a recommended PCB layout and land pattern in their application note AN9313, which can be found on their website. Following this layout ensures optimal performance, thermal management, and reliability.
To select the correct TVS diode, consider factors such as the maximum voltage, current, and power rating required for your application. Also, consider the package type, operating temperature range, and response time. Littelfuse provides a TVS Diode Selection Guide that can help with this process.
The SP1224-01UTG is a specific part number with unique characteristics, such as its voltage rating, power rating, and package type. Comparing the datasheets of similar TVS diodes from Littelfuse can help identify the differences. Additionally, Littelfuse's product selection guides and application notes can provide further insight.
Follow the recommended soldering and mounting procedures outlined in Littelfuse's application note AN9313. This includes using the correct soldering temperature, solder type, and PCB material, as well as ensuring proper thermal management and mechanical stress relief.
The SP1224-01UTG is RoHS and REACH compliant, and meets various industry standards such as IEC 61000-4-2 and IEC 61000-4-4. However, it's essential to review the specific regulatory requirements for your application and ensure compliance with relevant standards and directives.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP1224-01UTG Overview

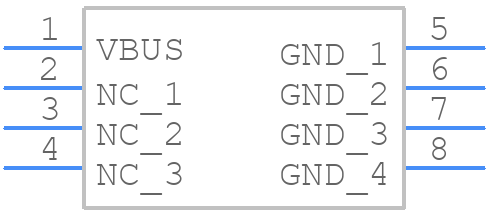

Use the download button to access the SP1224-01UTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP122,
or try a keyword search, such as Transient Suppressors
