SP3003-08ATG - LITTELFUSE

Description: LITTELFUSE - SP3003-08ATG - ESD Protection Device, TVS, 15 V, MSOP, 10 Pins, SP300 Series

Download SP3003-08ATG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

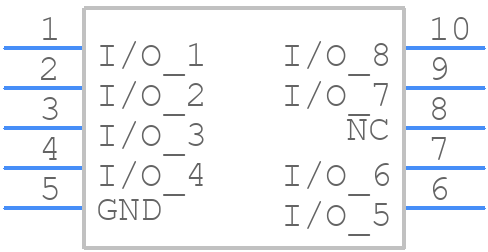

SP3003-08ATG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
SP3003-08ATG - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-10
click to zoom
3D Models
SP3003-08ATG - LITTELFUSE - 3D model - Small Outline Packages - MSOP-10
click to zoom

SP3003-08ATG Details

  • Manufacturer Part Number:

    SP3003-08ATG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOD

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.44

  • Clamping Voltage-Max:

    11.8 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    6 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SP3003-08ATG Frequently Asked Questions (FAQs)

  • A good PCB layout for the SP3003-08ATG involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the TVS diode and the protected circuit. A 4-layer PCB with a dedicated ground plane is recommended.
  • To choose the correct TVS diode, consider the maximum voltage and current requirements of your application, as well as the desired level of protection. The SP3003-08ATG is suitable for 3.3V systems and can handle up to 8A of current. Consult the datasheet and application notes for more information.
  • The SP3003-08ATG has an operating temperature range of -40°C to 150°C, making it suitable for a wide range of applications, including automotive and industrial systems.
  • Yes, the SP3003-08ATG is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.
  • The SP3003-08ATG has a typical response time of <1ns to an ESD event, making it suitable for protecting sensitive electronic circuits from fast-rising transients.
