SP3012-03UTG - LITTELFUSE

Description: ESD Suppressors / TVS Diodes 3Ch 12KV 0.5pF ESD Protection

Download SP3012-03UTG Model

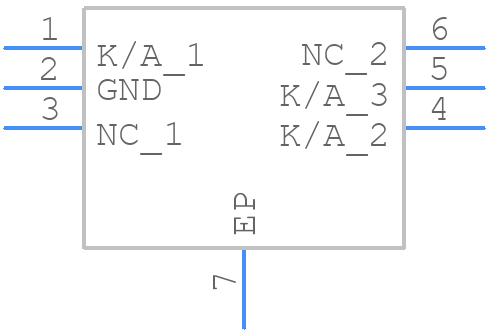

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP3012-03UTG - LITTELFUSE PCB footprint - Small Outline No-lead - Small Outline No-lead - μDFN-6-1
click to zoom
3D Models
SP3012-03UTG - LITTELFUSE  - 3D model - Small Outline No-lead - μDFN-6-1
click to zoom

SP3012-03UTG Details

  • Manufacturer Part Number:

    SP3012-03UTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-229

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

SP3012-03UTG Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SP3012-03UTG is a 1210 package with a pad size of 2.5mm x 1.5mm. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and then place the SP3012-03UTG on the pads. Use a reflow oven or a hot air gun to melt the solder paste. Make sure to follow the recommended soldering profile to avoid damaging the component.
  • The SP3012-03UTG has an operating temperature range of -40°C to 150°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of 0°C to 125°C for optimal performance.
  • Yes, the SP3012-03UTG is suitable for high-reliability applications. It's designed and manufactured to meet the requirements of AEC-Q101, which ensures the device meets the stringent quality and reliability standards of the automotive industry.
  • To prevent damage, store the SP3012-03UTG in its original packaging or in a moisture-proof bag with desiccant. Avoid exposing the device to moisture, extreme temperatures, or physical stress during shipping and storage. Follow the recommended storage and handling procedures outlined in the datasheet to ensure the device's reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SP3012-03UTG Overview

Use the download button to access the SP3012-03UTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP301, or try a keyword search, such as Transient Suppressors
