SP3220EBCY-L footprint, schematic symbol and 3D model by EXAR

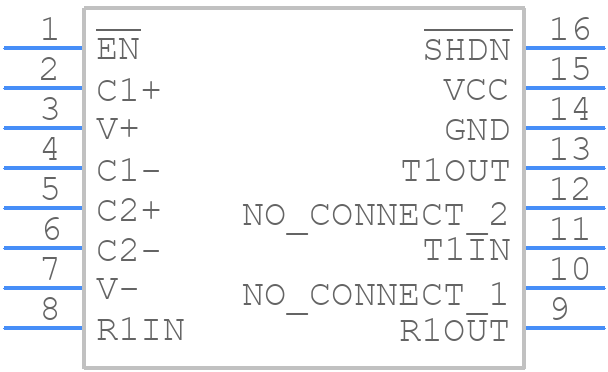

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SP3220EBCY-L
Part Number SP3220EBCY-L
Manufacturer EXAR
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-PIN TSSOP
Released Date Sep 24, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SP3220EBCY-L Details

Manufacturer Part Number:
SP3220EBCY-L
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
TSSOP-16
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Exar Corporation
Differential Output:
NO
Driver Number of Bits:
1
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-232; TIA-232; EIA-562; TIA-562; V.24; V.28
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Out Swing-Min:
10 V
Output Low Current-Max:
0.0016 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receiver Number of Bits:
1
Seated Height-Max:
1.1 mm
Supply Current-Max:
1 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

SP3220EBCY-L Frequently Asked Questions (FAQs)

The recommended layout and placement for the SP3220EBCY-L involves placing the device near the UART interface, using a solid ground plane, and keeping the signal traces short and away from noise sources. A 4-layer PCB with a dedicated ground plane is recommended.
The power-up and power-down sequencing for the SP3220EBCY-L involves applying power to the VCC pin first, followed by the VIO pin. During power-down, the VIO pin should be powered down first, followed by the VCC pin.
The SP3220EBCY-L has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of 0°C to 70°C, and the PCB should be designed to dissipate heat effectively.
The SP3220EBCY-L supports RTS/CTS flow control. To implement flow control, connect the RTS pin to the CTS pin of the receiving device, and ensure that the flow control is enabled in the device's configuration.
The SP3220EBCY-L has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during device handling and PCB assembly. A minimum of 2kV HBM and 100V MM ESD protection is recommended.

Trust Checks

Community Provided

System Verified

Community Approved

SP3220EBCY-L Overview

Use the download button to access the SP3220EBCY-L schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SP322, or try a keyword search, such as Line Driver or Receivers
