A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a ferrite bead to reduce EMI.
Use a shielded cable, keep the cable length short, and use a common mode filter at the receiver end. Also, ensure that the transmitter and receiver are properly terminated and matched to the cable impedance.
The maximum cable length depends on the baud rate and the type of cable used. As a general guideline, the maximum cable length is 1000 feet at 9600 bps and 100 feet at 115200 bps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
Use a logic analyzer or an oscilloscope to monitor the transmit and receive signals. Check the power supply voltage, ground connections, and signal integrity. Verify that the baud rate, data bits, and stop bits are correctly configured. Consult the datasheet and application notes for troubleshooting guidelines.
Yes, the SP3220ECA-L/TR supports multi-drop configuration. However, it's essential to ensure that the total cable length and the number of devices do not exceed the recommended limits. Also, use a common mode filter and a ferrite bead to reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3220ECA-L/TR Overview

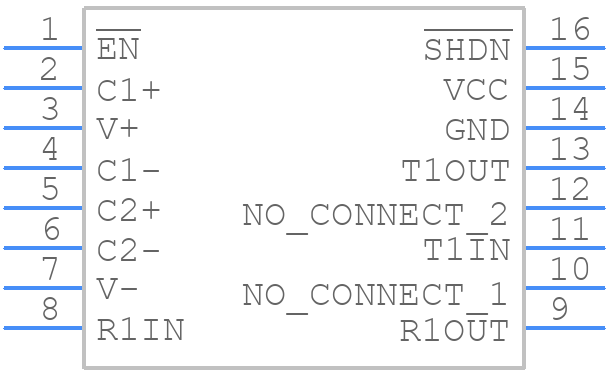

Use the download button to access the SP3220ECA-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
