A good PCB layout for the SP3221EEY-L/TR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper power and decoupling, use a high-quality power supply with low ripple and noise, and decouple the device with 0.1uF and 10uF capacitors between VCC and GND, placed as close to the device as possible.
The recommended clock frequency for the SP3221EEY-L/TR is 14.7456 MHz, which is the standard frequency for asynchronous communication. However, the device can operate with clock frequencies between 1 MHz and 24 MHz.
To configure the SP3221EEY-L/TR for RS-232 operation, connect the TX and RX pins to the RS-232 transceiver, and set the device to asynchronous mode. For RS-485 operation, connect the TX and RX pins to the RS-485 transceiver, and set the device to synchronous mode.
The maximum cable length supported by the SP3221EEY-L/TR depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is 50 feet at 9600 bps, 20 feet at 19,200 bps, and 10 feet at 38,400 bps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3221EEY-L/TR Overview

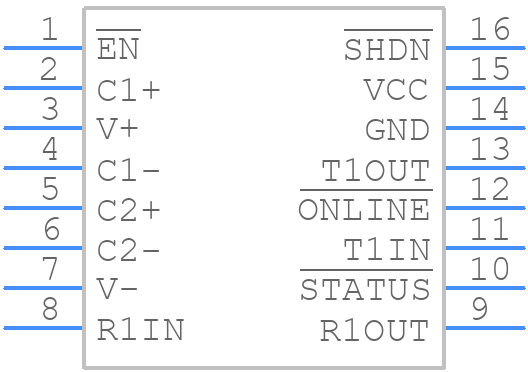

Use the download button to access the SP3221EEY-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
