A good PCB layout for the SP3222EBEA-L/TR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the device's pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the SP3222EBEA-L/TR, use a high-quality, low-ESR capacitor (e.g., 10uF) connected between the VCC pin and the GND pin, and place it as close to the device as possible. Additionally, use a 1uF capacitor between the VCC pin and the GND pin for additional decoupling.
The SP3222EBEA-L/TR is capable of achieving data rates of up to 100 Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal quality.
To troubleshoot issues with the SP3222EBEA-L/TR, start by verifying the power supply voltage and ensuring that it is within the recommended range. Next, check the signal quality and integrity of the transmission lines. Use an oscilloscope to verify the signal waveforms and check for any signs of distortion or noise. If issues persist, consult the datasheet and application notes for further guidance.
Yes, the SP3222EBEA-L/TR can be used in a multi-transceiver application, but it's essential to ensure that each transceiver has its own dedicated power supply and decoupling capacitors. Additionally, the PCB layout should be designed to minimize crosstalk and electromagnetic interference (EMI) between the transceivers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3222EBEA-L/TR Overview

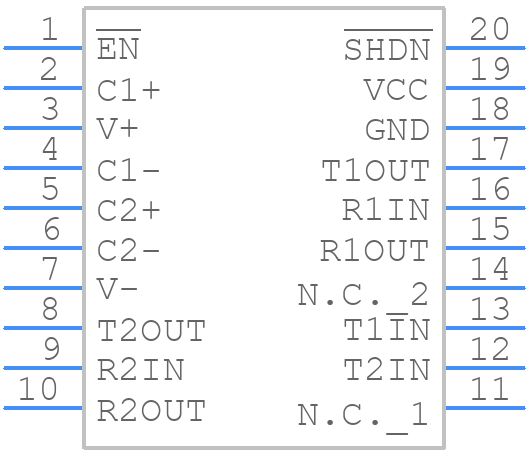

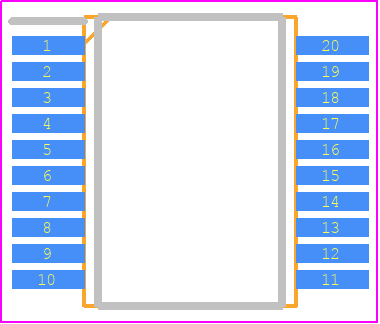

Use the download button to access the SP3222EBEA-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
