A good PCB layout for the SP3222EEA-L/TR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper power and decoupling, use a high-quality power supply with low ripple and noise, and decouple the device with 0.1uF and 10uF capacitors between VCC and GND, placed as close to the device as possible.
The SP3222EEA-L/TR can achieve data rates of up to 100 Mbps, but the actual data rate may vary depending on the specific application, cable length, and noise environment.
To troubleshoot issues with the SP3222EEA-L/TR, use a logic analyzer or oscilloscope to monitor the data transmission, check the signal integrity, and verify the device configuration and settings. Also, ensure that the device is properly powered and decoupled.
The SP3222EEA-L/TR is rated for operation from -40°C to 85°C, but it can be used in harsh environments with proper design considerations, such as using a heat sink, thermal interface material, and conformal coating. However, it's essential to consult with the manufacturer and perform thorough testing before deploying the device in such environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3222EEA-L/TR Overview

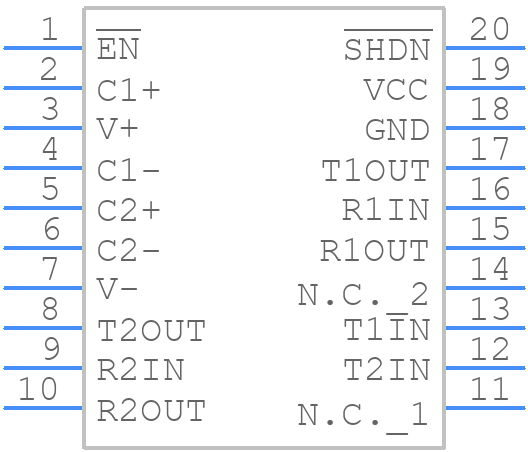

Use the download button to access the SP3222EEA-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
