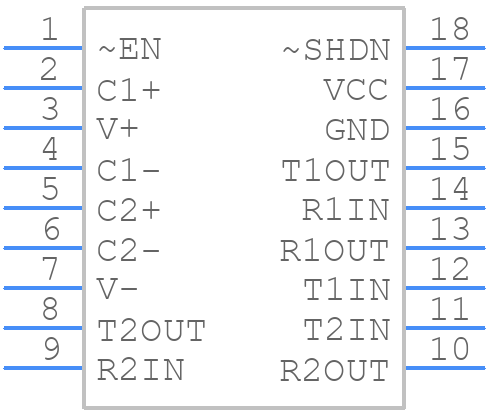

SP3222EET-L - EXAR

SP3222EET-L Details

• Manufacturer Part Number:

  SP3222EET-L

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  SOIC

• Package Description:

  LEAD FREE, PLASTIC, SOIC-18

• Pin Count:

  18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Exar Corporation

• Differential Output:

  NO

• Driver Number of Bits:

  2

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232; EIA-232-D; EIA-232-F; V.24; V.28; EIA-562; TIA-232; TIA-232-F; TIA-562

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e3

• Length:

  11.55 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Low Current-Max:

  0.0016 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  2

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  1 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
