A good PCB layout for the SP3222EUEY-L/TR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the VCC and GND pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the SP3222EUEY-L/TR, use a high-quality decoupling capacitor (e.g., 0.1uF) connected between the VCC and GND pins, and place it as close to the device as possible. Additionally, use a low-ESR capacitor (e.g., 10uF) connected between the VCC and GND pins to filter out noise.
The SP3222EUEY-L/TR is capable of achieving data rates of up to 100 Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and noise environment.
To configure the SP3222EUEY-L/TR for optimal ESD protection, ensure that the device is connected to a robust ESD protection circuit, such as a TVS diode or a transient voltage suppressor. Additionally, follow proper PCB layout guidelines to minimize the risk of ESD damage.
The recommended operating temperature range for the SP3222EUEY-L/TR is -40°C to +85°C. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3222EUEY-L/TR Overview

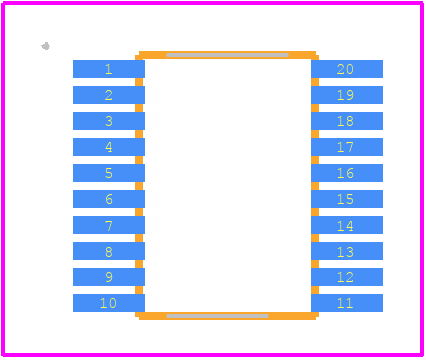

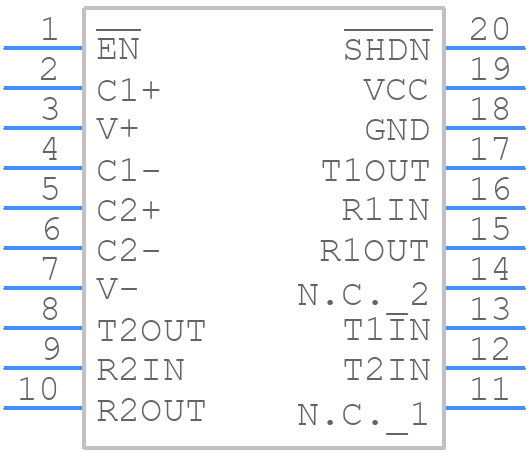

Use the download button to access the SP3222EUEY-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
