The recommended layout and placement for the SP3222EUEY-L involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the connector to minimize the length of the transmission lines.
To ensure reliable operation of the SP3222EUEY-L in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range, and the power supply should be designed to provide a stable voltage even at high temperatures.
The SP3222EUEY-L has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag, and avoiding touching the device's pins. Additionally, the device should be powered down before handling, and the power supply should be designed to provide a slow ramp-up to prevent ESD damage.
To troubleshoot issues with the SP3222EUEY-L, it is recommended to follow a systematic approach, starting with checking the power supply and signal integrity. Verify that the device is receiving the correct voltage and that the signals are within the specified range. Use an oscilloscope to check the signal waveforms and look for any signs of noise or distortion. Check the device's configuration and settings, and ensure that they are correct. If the issue persists, consult the datasheet and application notes, and contact Exar Corporation's technical support if necessary.
When using the SP3222EUEY-L in a battery-powered device, it is recommended to consider power consumption and power management. The device's power consumption should be minimized by using the lowest possible voltage and frequency, and by using power-saving modes when possible. Additionally, the device should be designed to operate from a single battery cell, and the power supply should be designed to provide a stable voltage even when the battery is low.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3222EUEY-L Overview

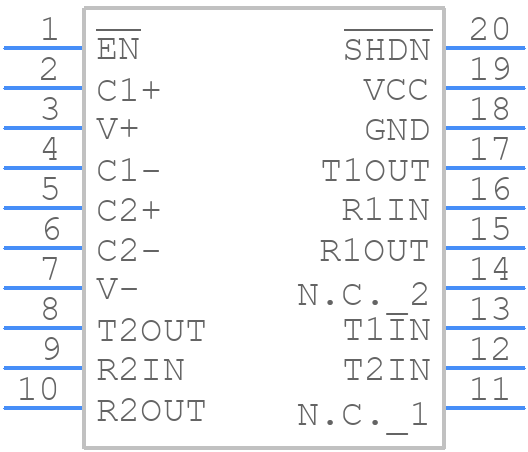

Use the download button to access the SP3222EUEY-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
