A good PCB layout for the SP3223EEA-L/TR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper power and decoupling, use a high-quality power supply with low ripple and noise, and decouple the device with 0.1uF and 10uF capacitors between VCC and GND, placed as close to the device as possible.
The SP3223EEA-L/TR can achieve data rates of up to 100 Mbps, but the actual data rate may vary depending on the specific application, cable length, and noise environment.
To troubleshoot issues with the SP3223EEA-L/TR, check the power supply and decoupling, ensure proper termination and impedance matching, and verify the signal integrity and noise levels. Use oscilloscopes and logic analyzers to debug the signal and identify the root cause of the issue.
The SP3223EEA-L/TR is rated for operation from -40°C to 85°C, but it can be used in harsh environments with proper design and testing. However, it's essential to evaluate the device's performance and reliability under the specific environmental conditions of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3223EEA-L/TR Overview

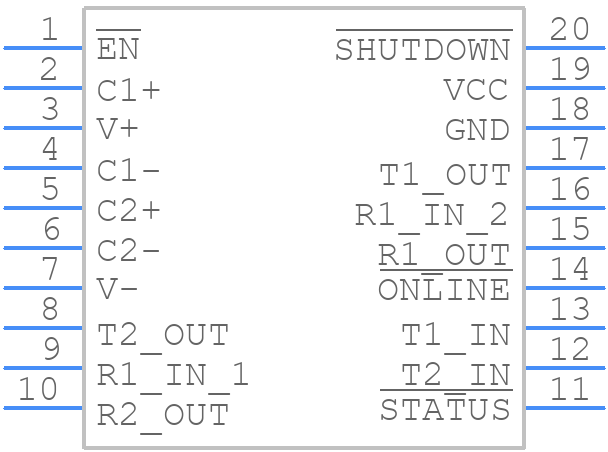

Use the download button to access the SP3223EEA-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP322,
or try a keyword search, such as Line Driver or Receivers
