IT ALSO SUPPORTS 1 DRIVER, 1 RECEIVER WITH INTERFACE STANDARD RS-485/422
Differential Output:
YES
Driver Number of Bits:
2
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-232; V.28
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Functions:
2
Number of Terminals:
32
Operating Temperature-Max:
70 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Receive Delay-Max:
150 ns
Receiver Number of Bits:
2
Seated Height-Max:
1 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
1000 ns
Width:
5 mm
SP335ECR1-L Frequently Asked Questions (FAQs)
MaxLinear provides a reference design and layout guidelines in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).
To minimize power consumption, ensure that the device is operated within the recommended voltage range, and use the power-down mode when not in use. Additionally, optimize the external component selection, such as using low-power resistors and capacitors, and consider using a low-dropout regulator (LDO) for voltage regulation.
The SP335ECR1-L has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. Use anti-static wrist straps, mats, and packaging materials, and avoid touching the device's pins or exposed internal components.
The SP335ECR1-L is rated for operation up to 85°C, but it's essential to consider the thermal derating and ensure proper heat dissipation. For high-temperature applications, consider using a heat sink or thermal interface material, and consult with MaxLinear's support team for guidance.
Use a logic analyzer or oscilloscope to monitor the device's signals and identify issues. Consult MaxLinear's documentation and application notes for troubleshooting guides and FAQs. Additionally, consider using a development board or evaluation kit to simplify the debugging process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP335ECR1-L Overview

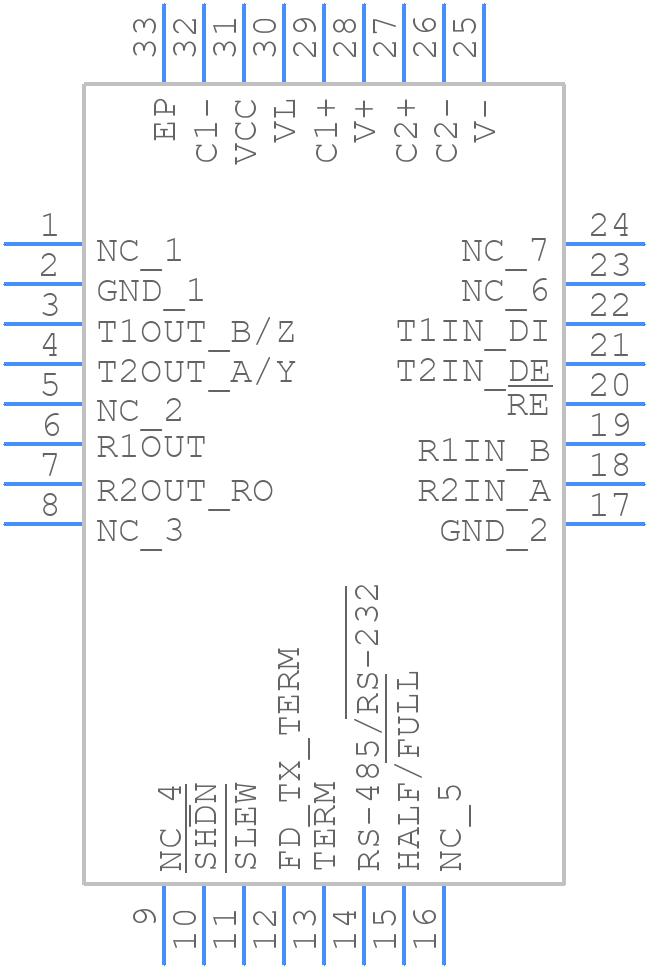

Use the download button to access the SP335ECR1-L schematic symbol, PCB footprint, and 3D model.
