A good PCB layout for the SP336ECY-L should minimize signal trace lengths, use a solid ground plane, and keep analog and digital signals separate. Exar Corporation provides a recommended PCB layout in their application notes.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its specified operating temperature range.
When using multiple transceivers in a system, it's crucial to ensure that each transceiver has its own dedicated clock source and that the clock signals are not shared between transceivers. This helps prevent clock skew and ensures reliable data transmission.
To troubleshoot issues with the SP336ECY-L, start by verifying the device's power supply, clock signal, and data transmission lines. Use oscilloscopes or logic analyzers to monitor signal integrity and identify potential issues. Consult Exar Corporation's application notes and technical support resources for further guidance.
Yes, when designing with the SP336ECY-L, it's essential to follow proper EMI/EMC design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference. Exar Corporation provides guidelines for EMI/EMC design in their application notes.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SP336ECY-L Overview

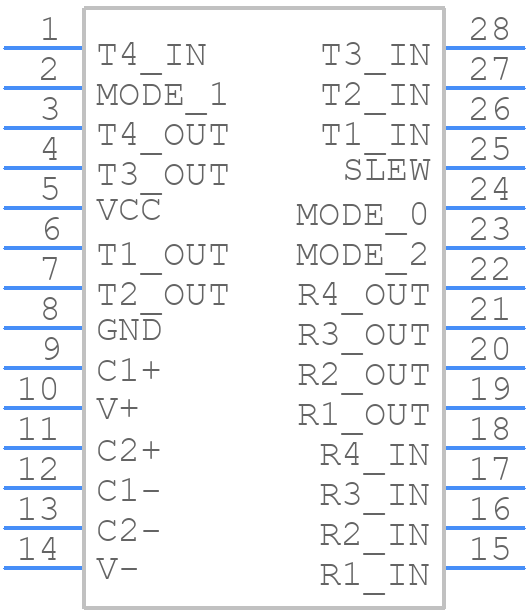

Use the download button to access the SP336ECY-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP336,
or try a keyword search, such as Line Driver or Receivers
