SP336EET-L - EXAR

Description: TRANSCEIVER

Download SP336EET-L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

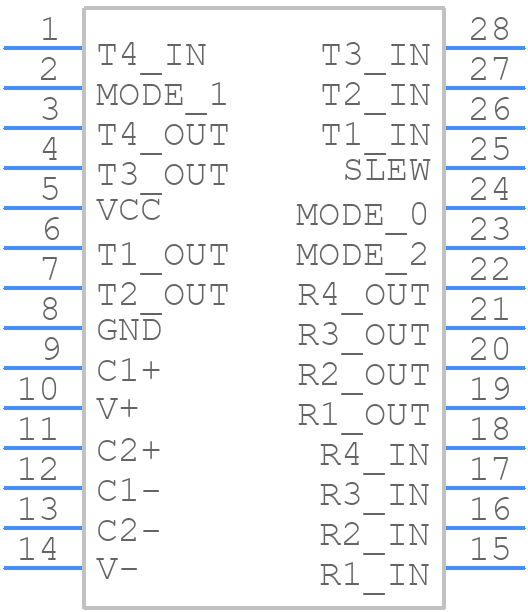

SP336EET-L - EXAR - PCB symbol
click to zoom
PCB Footprints

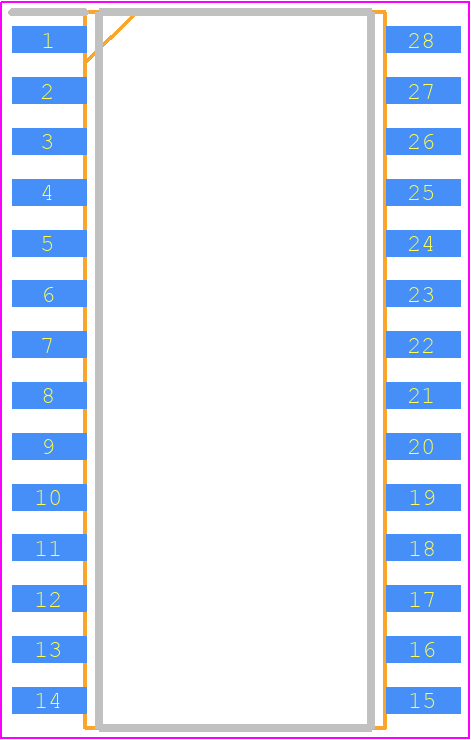

SP336EET-L - EXAR PCB footprint - Small Outline Packages - Small Outline Packages - 28 Pin SOICW
click to zoom
3D Models
SP336EET-L - EXAR - 3D model - Small Outline Packages - 28 Pin SOICW
click to zoom

SP336EET-L Details

  • Manufacturer Part Number:

    SP336EET-L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Exar Corporation

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.11; V.28; EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0025 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

SP336EET-L Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the SP336EET-L. Ensure that the device is placed near the connector, and use a solid ground plane to reduce EMI. Keep the signal traces short and away from the power traces. Use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The SP336EET-L has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap, mat, or workstation, and ensure that the device is handled in a static-safe environment.
  • The maximum cable length supported by the SP336EET-L depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is around 100 meters at 115.2 kbps. However, it's recommended to consult the datasheet and perform testing to determine the optimal cable length for your specific application.
  • The SP336EET-L can be configured for half-duplex or full-duplex operation using the RTS and CTS pins. For half-duplex operation, tie the RTS pin to the CTS pin. For full-duplex operation, use the RTS pin to control the transmitter and the CTS pin to control the receiver.
  • The power consumption of the SP336EET-L depends on the operating mode and the baud rate. In general, the device consumes around 10-20 mA in active mode and around 1-5 mA in standby mode. Consult the datasheet for more detailed power consumption information.
