A good PCB layout for the SP3374NUTG involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common ground point for the input and output grounds.
To ensure proper cooling, make sure to provide adequate airflow around the device, and consider using a heat sink or thermal pad if the device will be operating at high temperatures or high currents. The device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation.
The SP3374NUTG has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments or handling.
Yes, the SP3374NUTG is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101 and is designed to withstand harsh environments. However, it's essential to follow the recommended operating conditions and ensure proper derating for high-temperature and high-reliability applications.
To troubleshoot issues with the SP3374NUTG, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3374NUTG Overview

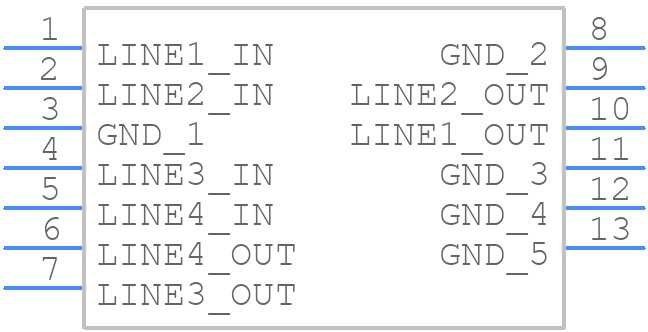

Use the download button to access the SP3374NUTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP337,
or try a keyword search, such as Transient Suppressors
