SP4-P-DC24V - Panasonic

SP4-P-DC24V Details

• Manufacturer Part Number:

  SP4-P-DC24V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  36 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  36.8 mm

• Body Height:

  22 mm

• Body Length or Diameter:

  50 mm

• Coil Current(DC)-Max:

  0.013 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  300 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  1920 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  2500VA@250VAC

• Contact (AC) Max Rating R Load:

  10A@250VAC

• Contact Current(AC)-Max:

  10 A

• Contact Current(DC)-Max:

  10 A

• Contact (DC) Max Power Rating R Load:

  300W@30VDC

• Contact (DC) Max Rating R Load:

  10A@30VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

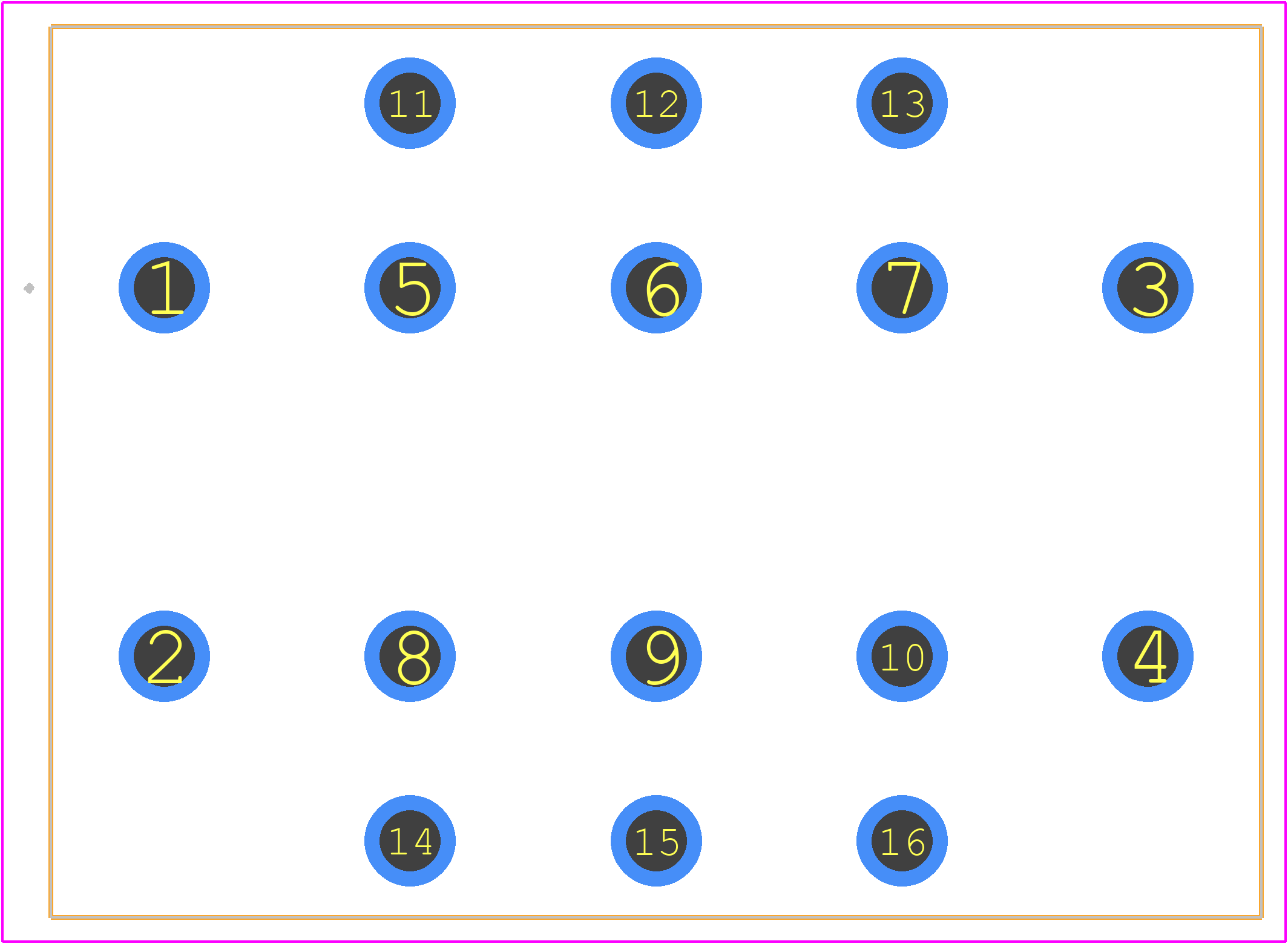

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  16

• Operate Time:

  30 ms

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -50 °C

• Packing Method:

  BOX

• Physical Dimension:

  50mm x 36.8mm x 22mm

• Reference Standard:

  CSA; TUV; UL

• Relay Action:

  MOMENTARY

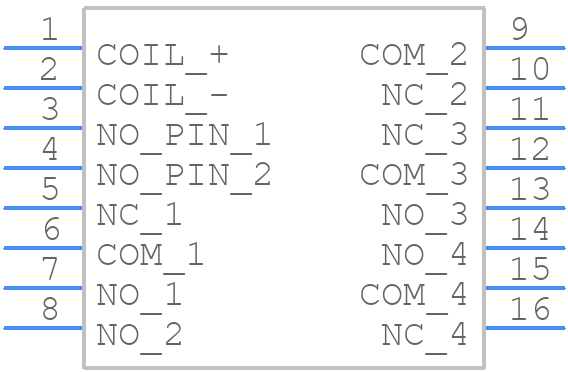

• Relay Form:

  4 FORM C

• Relay Function:

  4PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  20 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
