A good PCB layout for the SP4060-08ATG involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common ground point for the input and output grounds.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The SP4060-08ATG has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation. Additionally, it's recommended to use ESD-protective packaging and to ground all equipment and personnel before handling the device.
Yes, the SP4060-08ATG is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards.
To troubleshoot issues with the SP4060-08ATG, start by verifying the input and output voltages, checking for proper PCB layout and component placement, and ensuring that the device is operated within its specified conditions. If issues persist, consult the datasheet and application notes or contact Littelfuse support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP4060-08ATG Overview

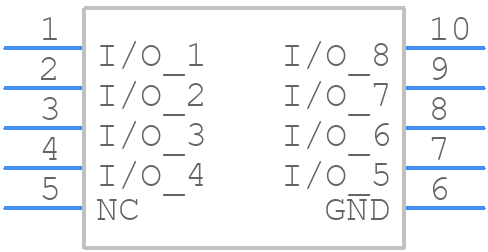

Use the download button to access the SP4060-08ATG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP406,
or try a keyword search, such as Transient Suppressors
