SP485RCN-L/TR - MaxLinear, Inc.

Description: RS-422/RS-485 Interface IC High-Fanout RS-485

Download SP485RCN-L/TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

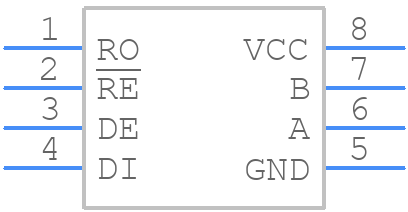

SP485RCN-L/TR - MaxLinear, Inc. - PCB symbol
click to zoom
PCB Footprints

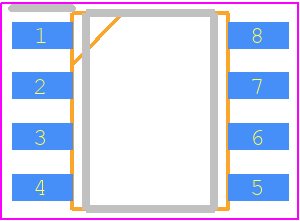

SP485RCN-L/TR - MaxLinear, Inc. PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin NSOIC
click to zoom
3D Models
SP485RCN-L/TR - MaxLinear, Inc. - 3D model - Small Outline Packages - 8-pin NSOIC
click to zoom

SP485RCN-L/TR Details

  • Manufacturer Part Number:

    SP485RCN-L/TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-02-27

  • Manufacturer:

    MaxLinear Inc

  • Interface IC Type:

    LINE TRANSCEIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

SP485RCN-L/TR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SP485RCN-L/TR is 4.5V to 5.5V.
  • To ensure reliable data transmission, ensure that the transmitter and receiver are properly terminated, use a balanced transmission line, and maintain a common mode voltage within the specified range.
  • The SP485RCN-L/TR supports data rates up to 10 Mbps.
  • To minimize EMI, use a shielded cable, keep the transmission line as short as possible, and ensure proper grounding and shielding of the device.
  • The maximum cable length supported by the SP485RCN-L/TR is 4000 feet (1219 meters) at a data rate of 10 Mbps.
