For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note AN-215 from MaxLinear Inc. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
To optimize the SP491EN-L/TR for low power consumption, ensure that the device is operated within the recommended voltage range, and consider using the power-down mode when not in use. Additionally, optimize the external component selection and PCB design to minimize power losses.
For testing and measurement, follow the guidelines outlined in the SP491EN-L/TR datasheet and application notes. Use a high-impedance probe and a low-capacitance oscilloscope to minimize loading effects. Ensure proper grounding and shielding to reduce noise and interference.
To troubleshoot oscillations or instability, check the PCB layout and component selection for any potential issues. Verify that the device is operated within the recommended voltage and temperature ranges. Consult the application notes and datasheet for troubleshooting guidelines and consider seeking support from MaxLinear Inc. or a qualified engineer.
The SP491EN-L/TR is a sensitive device and requires proper ESD protection and handling precautions. Follow standard ESD handling procedures, use anti-static wrist straps, and ensure that the device is stored in an anti-static bag or container when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP491EN-L/TR Overview

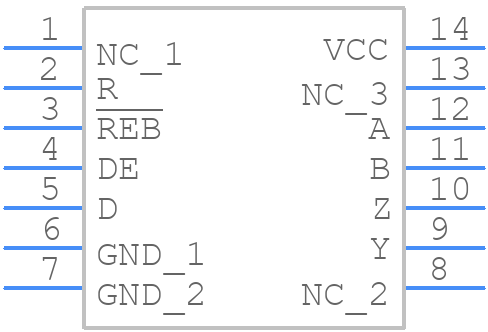

Use the download button to access the SP491EN-L/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP491,
or try a keyword search, such as Line Driver or Receivers
