A good PCB layout for the SP5003-04TTG involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10nF capacitor between the VIN and GND pins to filter out noise.
To ensure proper cooling, make sure to provide adequate airflow around the device, and consider using a heat sink or thermal pad if the device will be operating at high temperatures or high currents. The device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation.
The SP5003-04TTG has built-in ESD protection up to ±30kV contact discharge and ±30kV air discharge, making it suitable for use in applications where ESD protection is critical.
Yes, the SP5003-04TTG is AEC-Q101 qualified, making it suitable for use in high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions and guidelines to ensure the device meets the required reliability standards.
To troubleshoot issues with the SP5003-04TTG, start by verifying the input voltage and current, checking for proper PCB layout and thermal management, and ensuring the device is operated within the recommended specifications. If issues persist, consult the datasheet and application notes or contact Littelfuse's technical support team for assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP5003-04TTG Overview

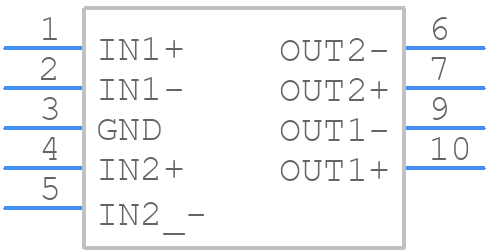

Use the download button to access the SP5003-04TTG schematic symbol and PCB footprint.
