A good PCB layout for the SP720APP involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper soldering and avoid thermal issues, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the device. Avoid overheating the device, and ensure good thermal conductivity by using a thermal pad or a heat sink.
The SP720APP provides ESD protection up to ±30kV contact discharge and ±30kV air discharge, and surge protection up to 3A according to IEC 61000-4-5. It also meets the requirements of IEC 61000-4-2 for ESD immunity.
The SP720APP is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure proper thermal management and consider the device's power dissipation and thermal resistance when designing the system.
Select the correct SP720APP variant by considering the required voltage rating, current rating, and package type. The SP720APP comes in different voltage ratings (5V, 12V, 15V, and 24V) and package types (SOT23 and SOIC). Choose the variant that best matches your application's requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP720APP Overview

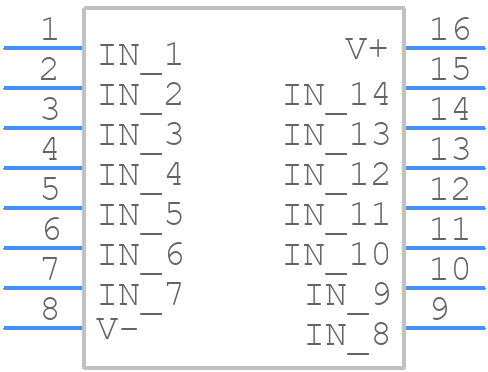

Use the download button to access the SP720APP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP720,
or try a keyword search, such as Transient Suppressors
