- Part Number SP8K24HZGTB
- Manufacturer ROHM Semiconductor
- Pin Count 8
- Part Category MOSFET (N-Channel)
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8 lead sop
- Released Date Sep 16, 2022
- Last Modified Date Apr 22, 2025 2:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
SP8K24HZGTB Details
-
Manufacturer Part Number:
SP8K24HZGTB
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2020-02-26
-
Manufacturer:
ROHM Semiconductor
-
YTEOL:
5
-
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
-
DS Breakdown Voltage-Min:
45 V
-
Drain Current-Max (ID):
6 A
-
Drain-source On Resistance-Max:
0.037 Ω
SP8K24HZGTB Frequently Asked Questions (FAQs)
-
A good PCB layout for the SP8K24HZGTB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a low-thermal-resistance path to the PCB's ground plane. Avoid routing high-frequency signals near the device to minimize electromagnetic interference.
-
To ensure reliable operation across the entire operating temperature range (-40°C to 125°C), follow the recommended operating conditions, and consider the device's thermal characteristics. Implement thermal management techniques, such as heat sinks or thermal pads, and ensure good airflow around the device.
-
For EMI and EMC compliance, ensure proper PCB layout, decoupling, and shielding. Use a multi-layer PCB with a solid ground plane, and route high-frequency signals away from the device. Implement EMI filters, and consider using a metal shield or a Faraday cage to contain electromagnetic radiation.
-
Follow the recommended power-up and power-down sequences to prevent damage to the device. Ensure a slow and controlled voltage ramp-up (typically 1-10 ms) and ramp-down to prevent electrical overstress. Use a soft-start circuit or a voltage supervisor to regulate the power supply.
-
Monitor the device's temperature, voltage, and current to ensure reliable operation. Implement over-temperature protection (OTP), over-voltage protection (OVP), and over-current protection (OCP) to detect faults and prevent damage. Use a temperature sensor, voltage monitor, and current sense resistor to monitor the device's operating conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SP8K24HZGTB Overview

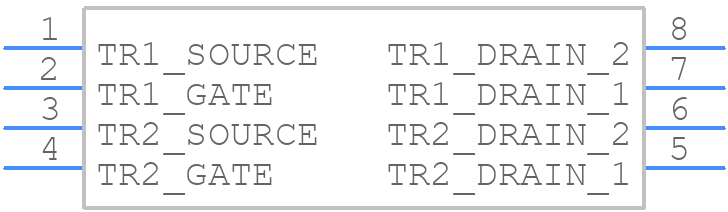

Use the download button to access the SP8K24HZGTB schematic symbol, PCB footprint, and 3D model.
