SP8M24FRATB - ROHM Semiconductor

Description: MOSFET Nch+Pch 45V Vds 4.5A 0.046Rds(on) 6.8Qg

Download SP8M24FRATB Model

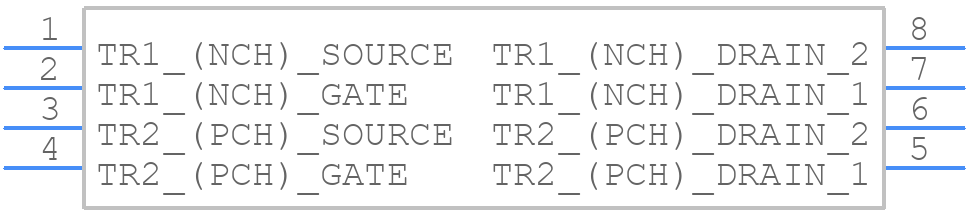

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP8M24FRATB - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8_11
click to zoom
3D Models
SP8M24FRATB - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP8_11
click to zoom

SP8M24FRATB Details

  • Manufacturer Part Number:

    SP8M24FRATB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    45 V

  • Drain Current-Max (ID):

    4.5 A

  • Drain-source On Resistance-Max:

    0.064 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    18 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SP8M24FRATB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SP8M24FRATB is -40°C to 125°C.
  • To ensure reliability, follow the recommended derating guidelines for voltage and current, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowable power dissipation for the SP8M24FRATB is 1.5W. However, this value may vary depending on the operating conditions and thermal management.
  • Yes, the SP8M24FRATB is AEC-Q101 qualified, making it suitable for use in automotive applications.
  • Follow proper ESD handling and assembly procedures, such as using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
