SP8M24HZGTB footprint, schematic symbol and 3D model by ROHM Semiconductor

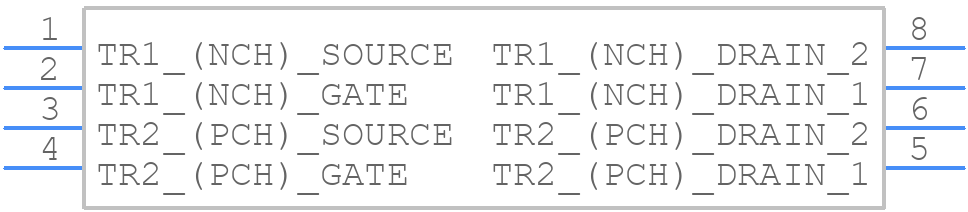

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SP8M24HZGTB
Part Number SP8M24HZGTB
Manufacturer ROHM Semiconductor
Pin Count 8
Part Category MOSFET (N-Channel)
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8 lead sop
Released Date Sep 16, 2022
Last Modified Date Apr 22, 2025 2:34 PM UTC
Pinout / Pin List Click Here (Member Only)

SP8M24HZGTB Details

Manufacturer Part Number:
SP8M24HZGTB
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Date Of Intro:
2019-09-09
Manufacturer:
ROHM Semiconductor
YTEOL:
5.4
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
45 V
Drain Current-Max (ID):
4.5 A
Drain-source On Resistance-Max:
0.064 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
70 pF
JESD-30 Code:
R-PDSO-G8
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL AND P-CHANNEL
Power Dissipation-Max (Abs):
2 W
Pulsed Drain Current-Max (IDM):
18 A
Reference Standard:
AEC-Q101
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

SP8M24HZGTB Frequently Asked Questions (FAQs)

ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including derating the power dissipation according to the temperature. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
ROHM recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
While the SP8M24HZGTB is not specifically designed for high-humidity environments, it can still be used with proper precautions. Ensure the device is properly sealed, and consider applying a conformal coating to protect against moisture ingress.
ROHM recommends storing the SP8M24HZGTB in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and a relative humidity of 60% or less. Avoid storing the device in direct sunlight or near heat sources.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SP8M24HZGTB Overview

Use the download button to access the SP8M24HZGTB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SP8M2, or try a keyword search, such as Power Field-Effect Transistors
