ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. ROHM also recommends derating the device's power dissipation according to the ambient temperature.
ROHM recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The device should be soldered using a solder with a melting point of 217°C (423°F) or higher. A soldering iron with a temperature control system is recommended to prevent overheating.
ROHM recommends taking standard ESD precautions when handling the SP8M31HZGTB, such as using an ESD wrist strap, mat, or workstation. The device has an internal ESD protection diode, but external protection measures are still necessary to prevent damage during handling and assembly.
ROHM recommends storing the SP8M31HZGTB in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and humidity below 60%. The device should be stored in its original packaging or an anti-static bag to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP8M31HZGTB Overview

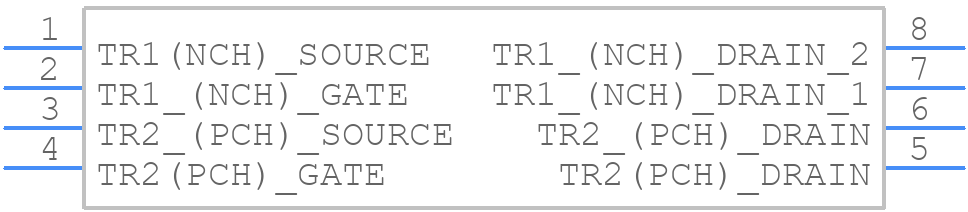

Use the download button to access the SP8M31HZGTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP8M3,
or try a keyword search, such as Power Field-Effect Transistors
