SP8M3FU6TB - ROHM Semiconductor

Description: ROHM - SP8M3FU6TB - Dual MOSFET, Complementary N and P Channel, 30 V, 4.5 A, 0.036 ohm, SOP, Surface Mount

Download SP8M3FU6TB Model

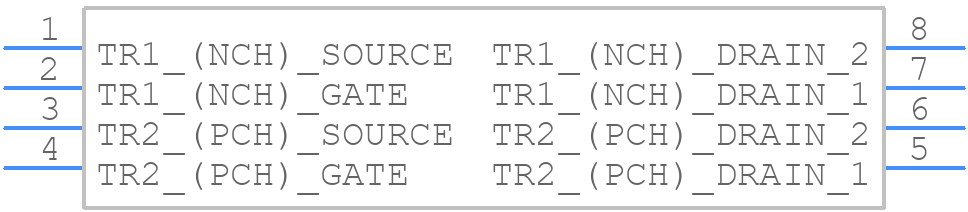

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP8M3FU6TB - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8(H=1.75mm)
click to zoom
3D Models
SP8M3FU6TB - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP8(H=1.75mm)
click to zoom

SP8M3FU6TB Details

  • Manufacturer Part Number:

    SP8M3FU6TB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Drain Current-Max (ID):

    5 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    2 W

  • Surface Mount:

    YES
