SP8M6HZGTB - ROHM Semiconductor

Description: 30V Nch+Pch Power MOSFET

Download SP8M6HZGTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

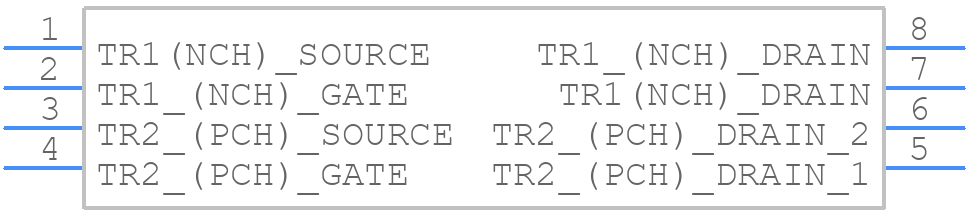

Symbol
SP8M6HZGTB - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
SP8M6HZGTB - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead sop
click to zoom
3D Models
SP8M6HZGTB - ROHM Semiconductor - 3D model - Small Outline Packages - 8 lead sop
click to zoom

SP8M6HZGTB Details

  • Manufacturer Part Number:

    SP8M6HZGTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-12-06

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.32

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.082 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    50 pF

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    2 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SP8M6HZGTB Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating curves in the datasheet, and ensuring good thermal design and heat dissipation. Additionally, consider using a heat sink or thermal interface material to reduce junction temperature.
  • Although not explicitly stated in the datasheet, ROHM recommends keeping the gate voltage between -5V and VCC + 0.3V to prevent damage to the internal gate oxide.
  • Yes, the SP8M6HZGTB is suitable for high-frequency switching applications up to 1MHz. However, ensure proper PCB layout, decoupling, and gate drive design to minimize ringing and losses.
  • ROHM recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensuring that all equipment and tools are properly grounded.
