SPBTLE-RF0TR - STMicroelectronics

Description: STMICROELECTRONICS - SPBTLE-RF0TR - BLUETOOTH MODULE, V4.1, 3.6V

Download SPBTLE-RF0TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

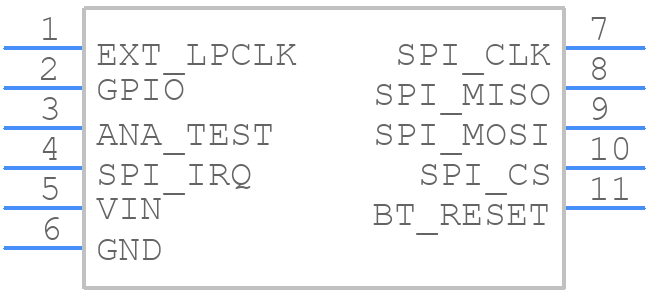

SPBTLE-RF0TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPBTLE-RF0TR - STMicroelectronics PCB footprint - Other - Other - SPSGRF-868-2
click to zoom
3D Models
SPBTLE-RF0TR - STMicroelectronics - 3D model - Other - SPSGRF-868-2
click to zoom

SPBTLE-RF0TR Details

  • Manufacturer Part Number:

    SPBTLE-RF0TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N11

  • Length:

    13.5 mm

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    11.5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

SPBTLE-RF0TR Frequently Asked Questions (FAQs)

  • The maximum transmission power of SPBTLE-RF0TR is +5 dBm.
  • To configure the SPBTLE-RF0TR for BLE operation, you need to set the mode pin (MODE) to '1' and the function pin (FUNC) to '0'. Additionally, you need to configure the device using the STMicroelectronics BlueNRG-MS GUI software or API.
  • The operating frequency range of SPBTLE-RF0TR is 2.402 GHz to 2.480 GHz, which is the standard frequency range for Bluetooth Low Energy (BLE) devices.
  • To reset the SPBTLE-RF0TR, you need to pull the reset pin (RST) low for at least 10 ns. This will reset the device and put it in a known state.
  • The power consumption of SPBTLE-RF0TR in sleep mode is typically around 50 nA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPBTLE-RF0TR Overview

Use the download button to access the SPBTLE-RF0TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPBTL, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
