SPBTLE-RFTR - STMicroelectronics

Description: STMICROELECTRONICS - SPBTLE-RFTR - BLUETOOTH MODULE, V4.1, 3.6V

Download SPBTLE-RFTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

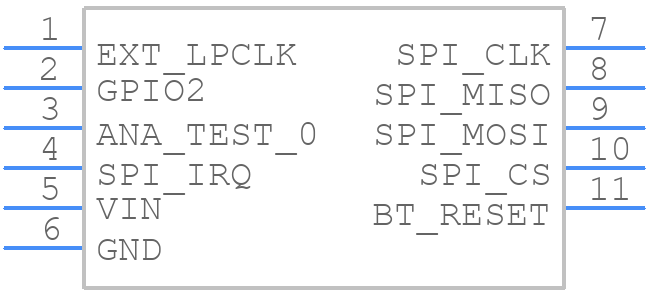

SPBTLE-RFTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPBTLE-RFTR - STMicroelectronics PCB footprint - Other - Other - SPBTLE-RFTR-3
click to zoom
3D Models
SPBTLE-RFTR - STMicroelectronics - 3D model - Other - SPBTLE-RFTR-3
click to zoom

SPBTLE-RFTR Details

  • Manufacturer Part Number:

    SPBTLE-RFTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-XDMA-N11

  • Length:

    13.5 mm

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11.5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

SPBTLE-RFTR Frequently Asked Questions (FAQs)

  • The maximum transmission power of SPBTLE-RFTR is +5 dBm.
  • To configure the SPBTLE-RFTR for BLE mode, you need to set the MODE pin to '0' and the BLE_EN pin to '1'. Additionally, you need to configure the device using the STMicroelectronics BlueNRG-MS GUI software.
  • The operating frequency range of SPBTLE-RFTR is 2.402 GHz to 2.480 GHz, which is the standard frequency range for Bluetooth Low Energy (BLE) devices.
  • You can update the firmware of SPBTLE-RFTR using the STMicroelectronics BlueNRG-MS GUI software and a serial communication interface such as UART or SPI.
  • The maximum data transfer rate of SPBTLE-RFTR is 2 Mbps.
