SPC15254 footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

click to zoom

PCB Footprints

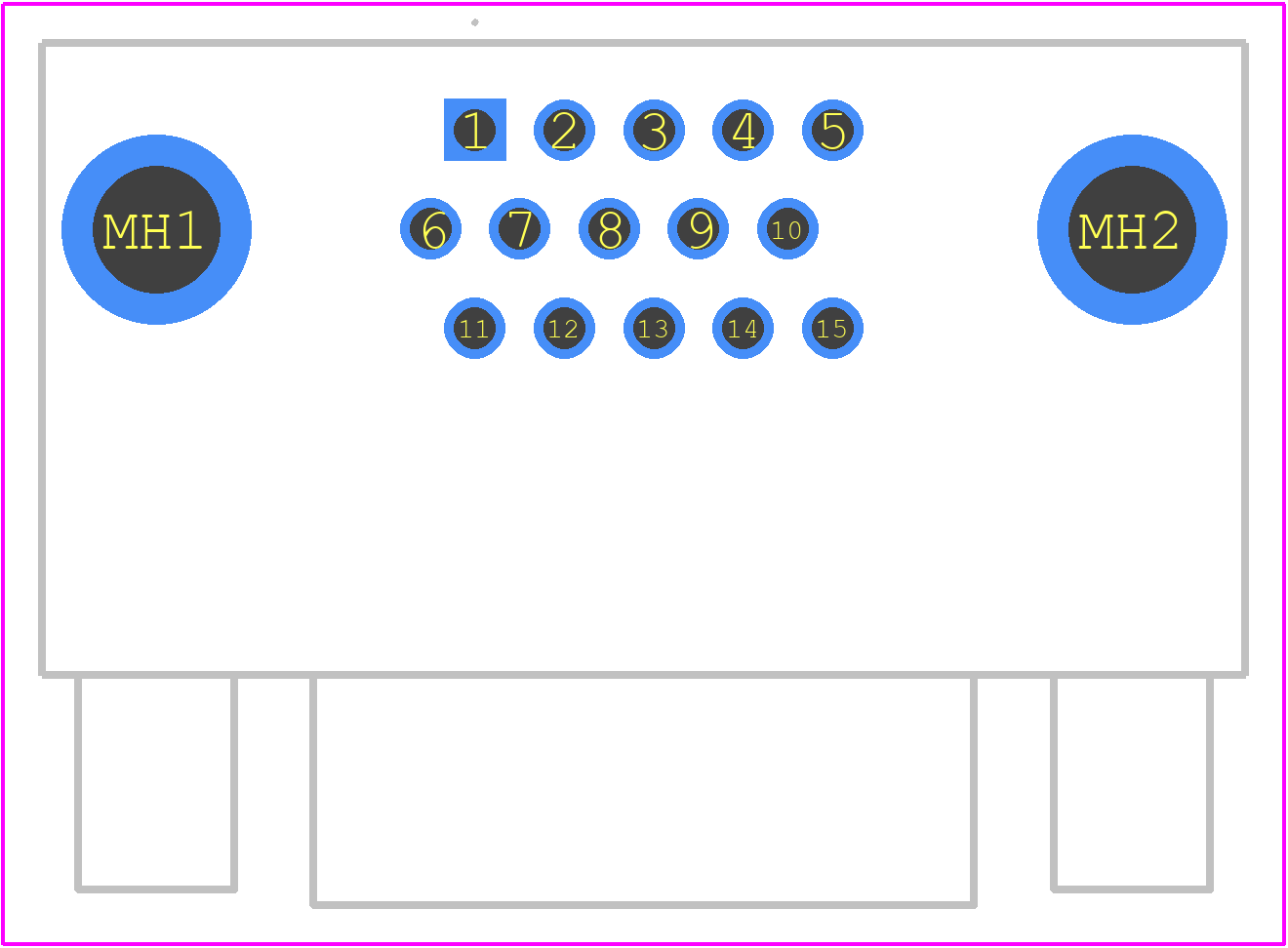

SPC15254 - Multicomp Pro PCB footprint - Other - Other - SPC15254-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SPC15254
Part Number SPC15254
Manufacturer Multicomp Pro
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - SPC15254-2
Released Date Jan 30, 2024
Last Modified Date Jan 15, 2026 6:34 AM UTC
Pinout / Pin List Click Here (Member Only)

SPC15254 Details

Manufacturer Part Number:
SPC15254
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
SPC Multicomp
Body Breadth:
0.496 inch
Body Depth:
0.638 inch
Body Length:
1.213 inch
Body/Shell Style:
PLUG
Contact Finish Mating:
AU ON NI
Contact Gender:
MALE
Contact Material:
BRASS
Contact Pattern:
STAGGERED
Contact Resistance:
15 mΩ
Contact Style:
RND PIN-SKT
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch:
0.09 inch
Mounting Option 1:
#4-40
Mounting Option 2:
JACKSCREW
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
5 A
Shell Finish:
NICKEL
Shell Material:
STEEL
Terminal Length:
0.126 inch
Terminal Pitch:
2.286 mm
Termination Type:
SOLDER
Total Number of Contacts:
15

SPC15254 Frequently Asked Questions (FAQs)

The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering components, and ensure that the device is properly grounded. Additionally, consider using a metal shield or enclosure to reduce electromagnetic radiation.
The recommended input filtering components include a 10uF ceramic capacitor and a 1uH inductor in series. For output filtering, use a 10uF ceramic capacitor and a 1uH inductor in parallel. These components help reduce noise and ripple.
To troubleshoot, check the input voltage, output load, and PCB layout. Verify that the device is properly cooled and that the thermal pad is connected to a solid ground plane. Use an oscilloscope to measure output voltage ripple and noise. Consult the datasheet and application notes for specific troubleshooting guidelines.
The SPC15254 is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. Ensure that the device is used within its specified operating conditions, and consider using redundant or fault-tolerant designs to mitigate potential failures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SPC15254 Overview

Use the download button to access the SPC15254 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SPC15, or try a keyword search, such as D Type Connectors
