SPC15430 - Multicomp Pro

Description: MULTICOMP - SPC15430 - D Sub Connector, Right Angle, HD15, Standard, Receptacle, 15 Contacts, DA, Solder

Download SPC15430 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC15430 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

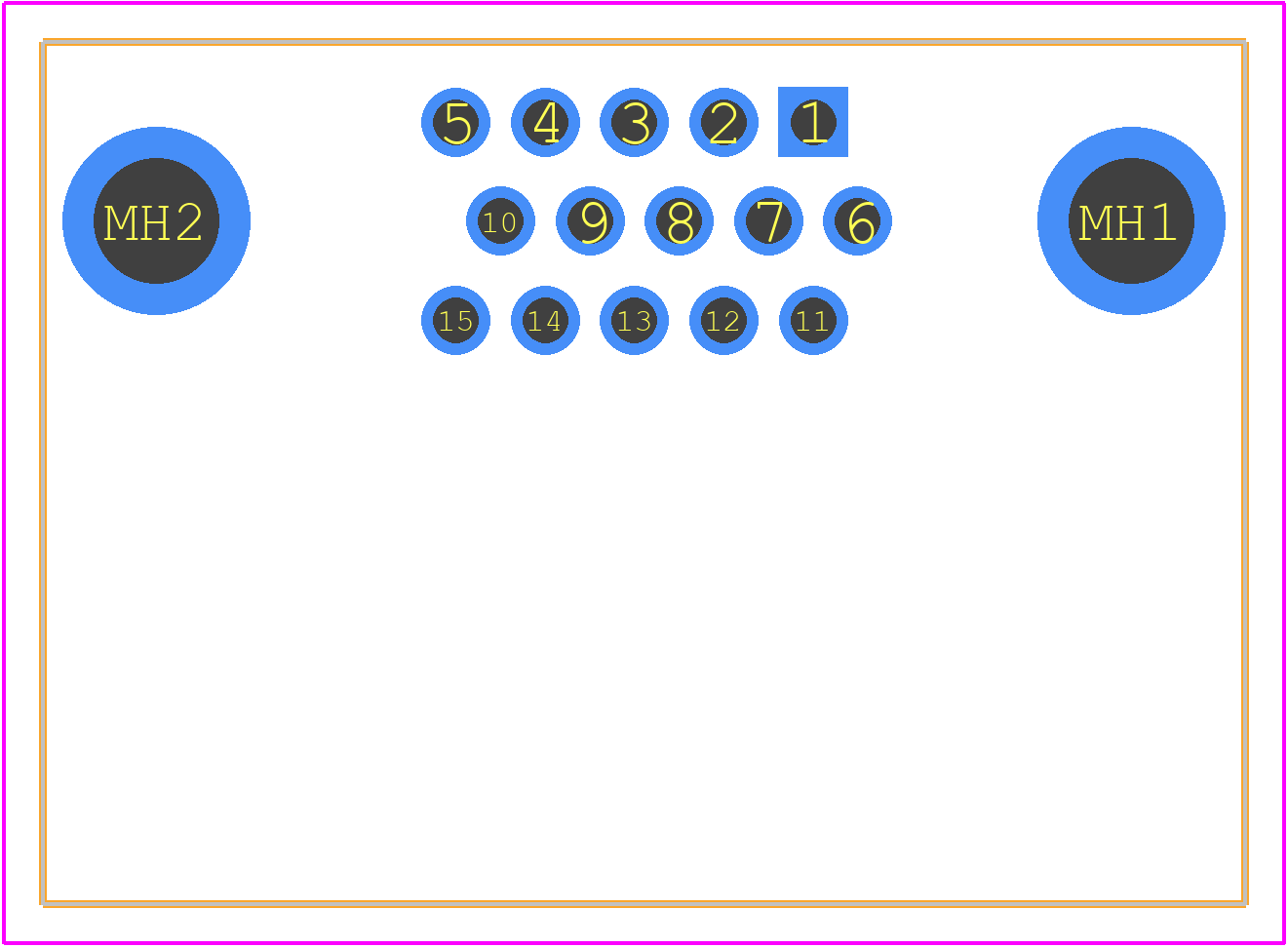

SPC15430 - Multicomp Pro PCB footprint - Other - Other - SPC15430-1
click to zoom
3D Models
SPC15430 - Multicomp Pro - 3D model - Other - SPC15430-1
click to zoom

SPC15430 Details

  • Manufacturer Part Number:

    SPC15430

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SPC Multicomp

  • Body Breadth:

    0.496 inch

  • Body Depth:

    0.63 inch

  • Body Length:

    1.213 inch

  • Body/Shell Style:

    RECEPTACLE

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.09 inch

  • Mating Contact Row Spacing:

    0.078 inch

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    2 A

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.286 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15
