A good PCB layout for the SPC15504 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) between the power pins and ground, and place them as close to the device as possible. Also, use a 0.1uF capacitor between the VCC and GND pins for additional filtering.
The SPC15504 can operate within a temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
To troubleshoot issues with the SPC15504, start by verifying the power supply and decoupling. Check the input and output signals using an oscilloscope or logic analyzer. Ensure that the device is properly configured and that the clock and data signals are correctly aligned. If issues persist, consult the datasheet and application notes or contact SPC Multicomp's technical support.
The SPC15504 is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. It's recommended to consult with SPC Multicomp's technical support and to review the device's reliability and quality data before using it in such applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SPC15504 Overview

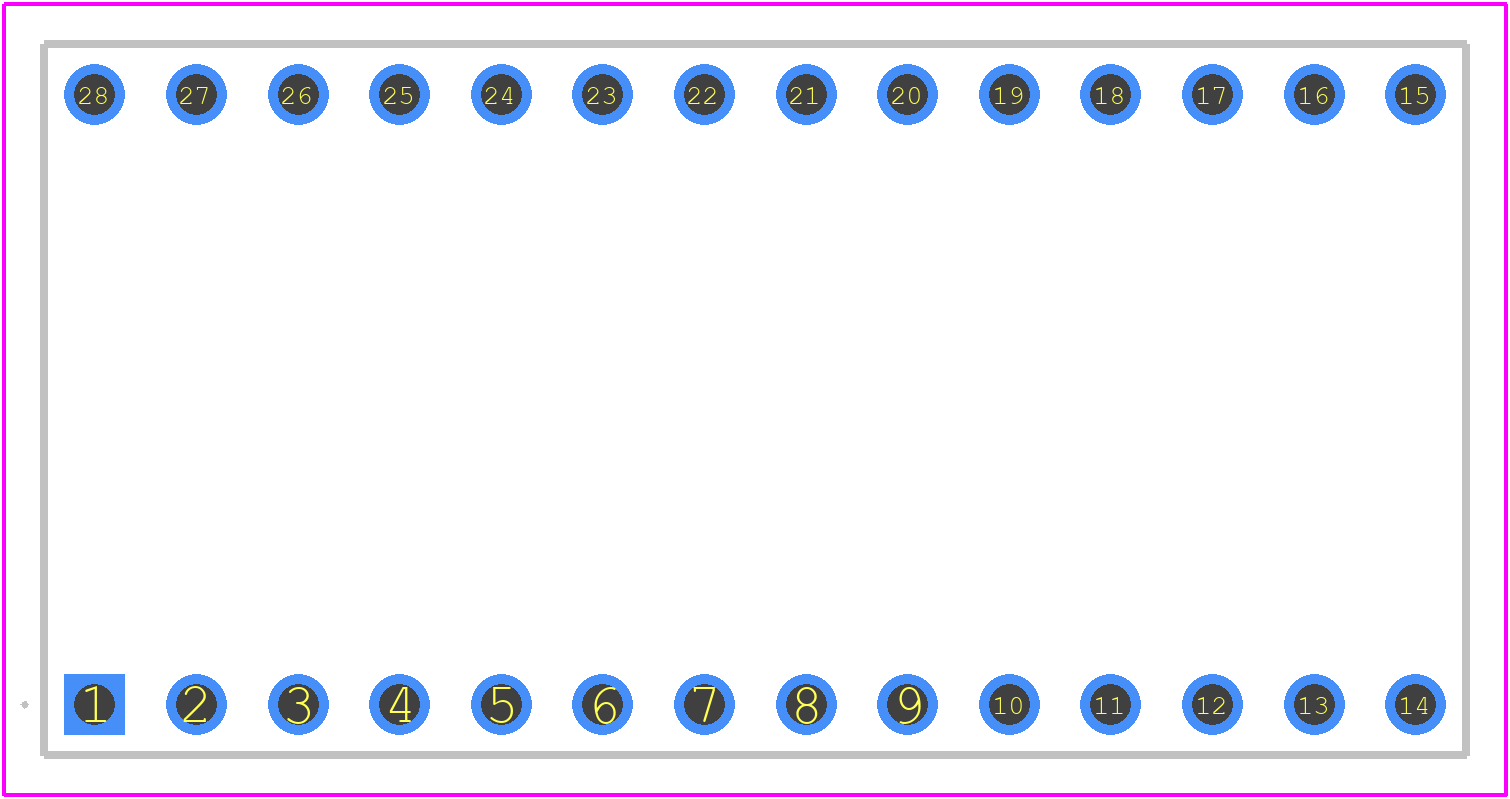

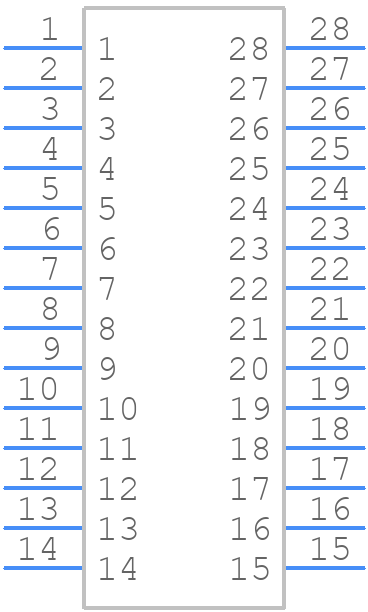

Use the download button to access the SPC15504 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC15,
or try a keyword search, such as Sockets and Chip Carriers
