SPC564A70L7CFAY - STMicroelectronics

Description: 32-bit Power Architecture® based MCU for automotive powertrain applications

Download SPC564A70L7CFAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC564A70L7CFAY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

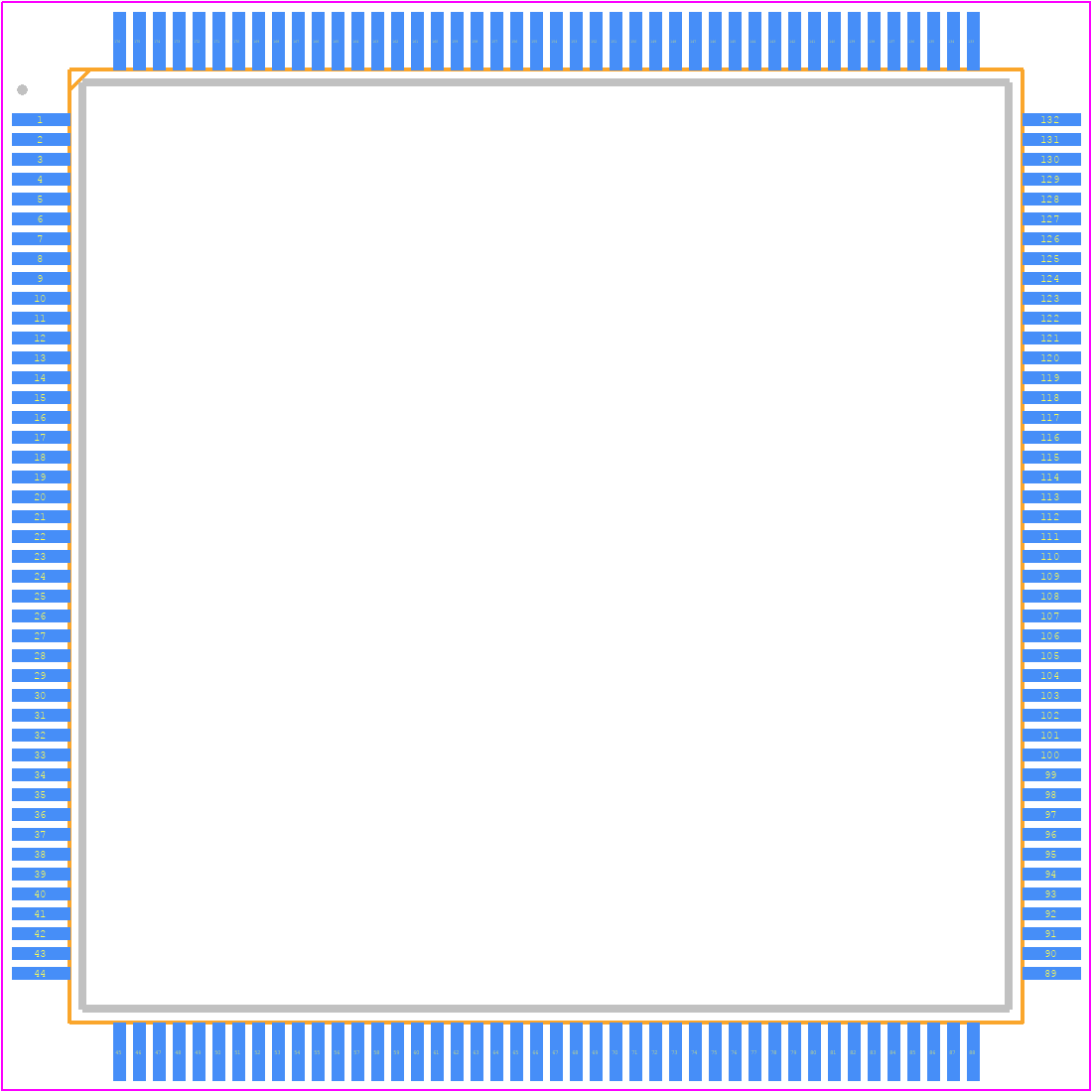

SPC564A70L7CFAY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP176 24 x 24 x 1.4-1
click to zoom
3D Models
SPC564A70L7CFAY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP176 24 x 24 x 1.4-1
click to zoom

SPC564A70L7CFAY Details

  • Manufacturer Part Number:

    SPC564A70L7CFAY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Has ADC:

    YES

  • Address Bus Width:

    22

  • Bit Size:

    32

  • Clock Frequency-Max:

    40 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    150 MHz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SPC564A70L7CFAY Frequently Asked Questions (FAQs)

  • The SPC564A70L7CFAY can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 105°C.
  • The clock settings can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to configure the clock sources, clock dividers, and clock outputs. You can use the STMicroelectronics' SPC5Studio development environment to configure the clock settings.
  • The maximum frequency of the CPU is 264 MHz, and the maximum frequency of the peripherals is 132 MHz.
  • The SPC564A70L7CFAY has a built-in Secure Boot mechanism that uses a combination of hardware and software to ensure the authenticity and integrity of the boot process. You can use the STMicroelectronics' Secure Boot library and the SPC5Studio development environment to implement secure boot on this microcontroller.
  • The SPC564A70L7CFAY has a typical power consumption of 250 mW/MHz in active mode, and 10 μA in sleep mode. The power consumption can be further optimized by using the microcontroller's power management features, such as dynamic voltage and frequency scaling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC564A70L7CFAY Overview

Use the download button to access the SPC564A70L7CFAY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC56, or try a keyword search, such as Microcontrollers
