SPC570S50E1CEFAR - STMicroelectronics

Description: 32-bit Microcontrollers - MCU 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications

Download SPC570S50E1CEFAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC570S50E1CEFAR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

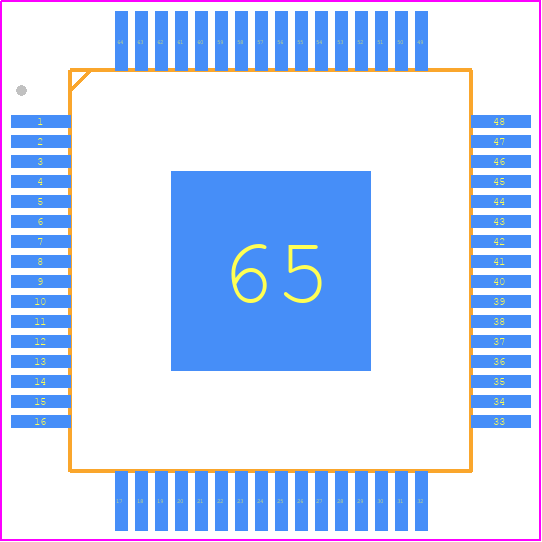

SPC570S50E1CEFAR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP64 (10x10x1 mm exp. pad down)--0
click to zoom
3D Models
SPC570S50E1CEFAR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP64 (10x10x1 mm exp. pad down)--0
click to zoom

SPC570S50E1CEFAR Details

  • Manufacturer Part Number:

    SPC570S50E1CEFAR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    TQFP 64 10x10x1.0

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    40 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    43

  • Number of Terminals:

    64

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • PWM Channels:

    NO

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    49152

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Speed:

    80 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC570S50E1CEFAR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the SPC570S50E1CEFAR application note (AN5163) which includes guidelines for power supply, decoupling, and signal routing.
  • Optimizing flash memory programming for the SPC570S50E1CEFAR involves using the STMicroelectronics-provided flash programming tools, such as the SPC5-FLASH, and following the guidelines in the SPC570S50E1CEFAR programming manual.
  • Thermal management for the SPC570S50E1CEFAR involves ensuring proper heat dissipation through the use of heat sinks, thermal interfaces, and PCB design considerations, as outlined in the SPC570S50E1CEFAR thermal design guide.
  • Implementing functional safety in a design using the SPC570S50E1CEFAR involves following the guidelines outlined in the SPC570S50E1CEFAR safety manual, which includes information on fault detection, error correction, and safety-oriented design principles.
  • EMC considerations for the SPC570S50E1CEFAR involve following the guidelines outlined in the SPC570S50E1CEFAR EMC application note, which includes information on PCB design, component selection, and shielding.
