SPC58EC70E1F000X - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Download SPC58EC70E1F000X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58EC70E1F000X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

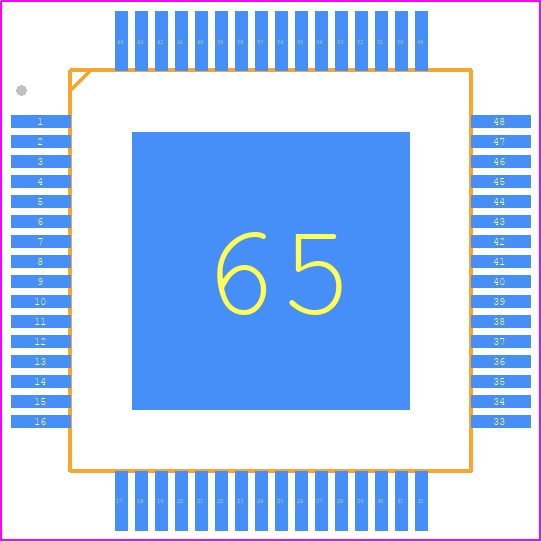

SPC58EC70E1F000X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP64 10x10x1.0
click to zoom
3D Models
SPC58EC70E1F000X - STMicroelectronics - 3D model - Quad Flat Packages - TQFP64 10x10x1.0
click to zoom

SPC58EC70E1F000X Details

  • Manufacturer Part Number:

    SPC58EC70E1F000X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-64

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of Serial I/Os:

    26

  • Number of Terminals:

    64

  • Number of Timers:

    12

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    393216

  • ROM (words):

    2097152

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC58EC70E1F000X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout guide in their application note AN5164, which includes guidelines for component placement, routing, and thermal management.
  • The clock settings for the SPC58EC70E1F000X can be configured using the Clock Control Unit (CCU) registers. The CCU is responsible for generating and distributing clock signals to the various peripherals. The configuration process involves setting the clock sources, dividers, and multipliers to achieve the desired clock frequencies.
  • The SPC58EC70E1F000X has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and proper thermal management is crucial to ensure reliable operation.
  • The SPC58EC70E1F000X has a built-in Secure Boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure boot, you need to generate a secure boot key, configure the BootROM, and use the Secure Boot library provided by STMicroelectronics. The process is detailed in the SPC58EC70E1F000X secure boot application note.
  • The power consumption of the SPC58EC70E1F000X depends on the operating mode, clock frequency, and peripheral usage. The datasheet provides typical power consumption values for different operating modes, and STMicroelectronics also provides a power consumption calculator tool to help estimate power consumption based on specific use cases.
