Part Image

SPC58EC80E5FMC0X - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Download SPC58EC80E5FMC0X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58EC80E5FMC0X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

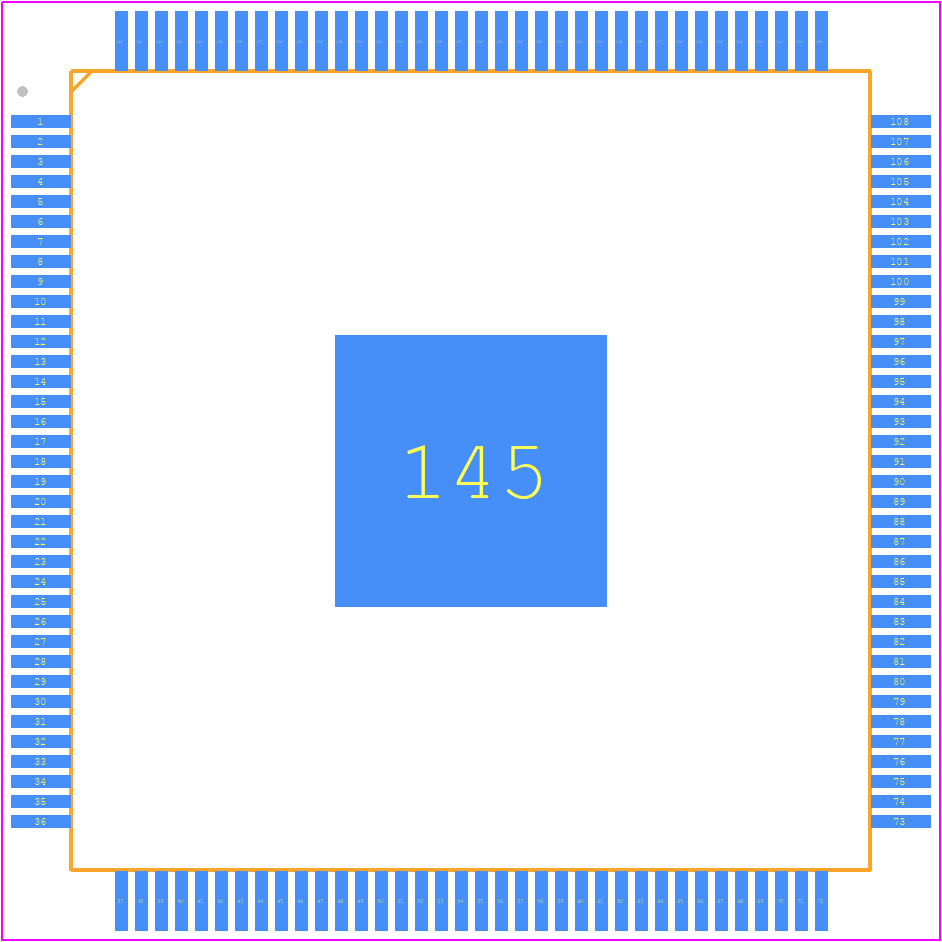

SPC58EC80E5FMC0X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - . eTQFP144 package outliness
click to zoom
3D Models
SPC58EC80E5FMC0X - STMicroelectronics - 3D model - Quad Flat Packages - . eTQFP144 package outliness
click to zoom

SPC58EC80E5FMC0X Details

  • Manufacturer Part Number:

    SPC58EC80E5FMC0X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-144

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    122

  • Number of Serial I/Os:

    18

  • Number of Terminals:

    144

  • Number of Timers:

    12

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP144,.87SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    524288

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC58EC80E5FMC0X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in the SPC58EC80E5FMC0X application note (AN5273) and the SPC58EC80E5FMC0X datasheet. It is essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The SPC58EC80E5FMC0X has several low-power modes, including Sleep, Stop, and Standby. To configure these modes, refer to the SPC58EC80E5FMC0X datasheet and the STMicroelectronics SPC58EC80E5FMC0X Low-Power Modes application note (AN5275). You can also use the STMicroelectronics SPC58EC80E5FMC0X Low-Power Modes software library.
  • The recommended oscillator settings for the SPC58EC80E5FMC0X are provided in the SPC58EC80E5FMC0X datasheet and the STMicroelectronics SPC58EC80E5FMC0X Oscillator Settings application note (AN5274). It is essential to follow these settings to ensure proper clock signal generation and stability.
  • The SPC58EC80E5FMC0X has a built-in secure boot mechanism. To implement secure boot, refer to the SPC58EC80E5FMC0X datasheet and the STMicroelectronics SPC58EC80E5FMC0X Secure Boot application note (AN5276). You can also use the STMicroelectronics SPC58EC80E5FMC0X Secure Boot software library.
  • The SPC58EC80E5FMC0X has an operating temperature range of -40°C to 125°C and an operating voltage range of 1.7V to 3.6V. Refer to the SPC58EC80E5FMC0X datasheet for more information on the device's operating conditions and limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC58EC80E5FMC0X Overview

Use the download button to access the SPC58EC80E5FMC0X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC58, or try a keyword search, such as Microcontrollers
