SPC58EC80E5FMC1X - STMicroelectronics

Description: SPC58 C Line - 32 bit Power Architecture automotive MCU Dual z4 cores 180 MHz, 4 MBytes Flash, HSM, ASIL-B

Download SPC58EC80E5FMC1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58EC80E5FMC1X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

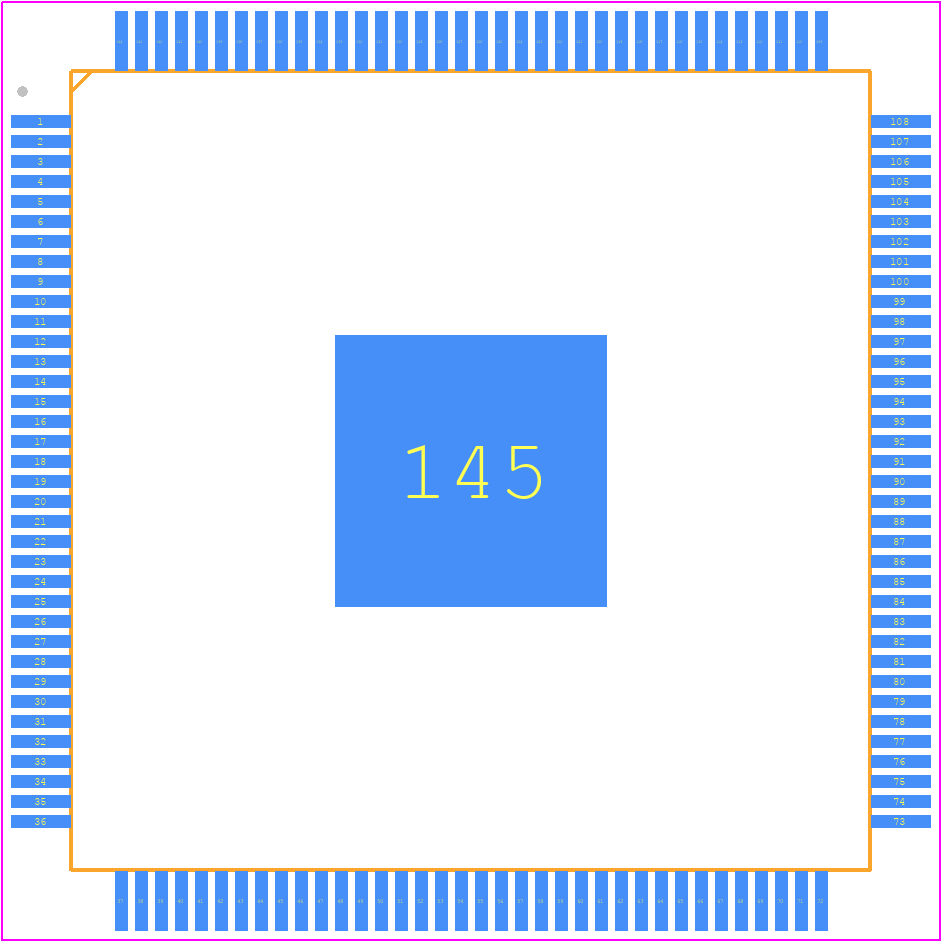

SPC58EC80E5FMC1X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP144_2
click to zoom
3D Models
SPC58EC80E5FMC1X - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP144_2
click to zoom

SPC58EC80E5FMC1X Details

  • Manufacturer Part Number:

    SPC58EC80E5FMC1X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-144

  • Country Of Origin:

    France, Italy

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e4

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    122

  • Number of Serial I/Os:

    18

  • Number of Terminals:

    144

  • Number of Timers:

    12

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP144,.87SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    524288

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC58EC80E5FMC1X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in the SPC58EC80E5FMC1X evaluation board user manual and in the application note AN5337. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The SPC58EC80E5FMC1X has several low-power modes, including sleep, stop, and standby. To configure these modes, refer to the device's datasheet and the STMicroelectronics' SPC58EC80E5FMC1X low-power mode application note AN5339. You'll need to set the appropriate registers and configure the clock management unit (CMU) to achieve the desired power consumption.
  • The SPC58EC80E5FMC1X's BIST feature is designed to test the device's internal memories and peripherals. However, it's essential to note that BIST does not cover all possible failure modes, and it's not a substitute for thorough testing and validation of the device in the target application. Additionally, BIST may not be compatible with all operating systems and software frameworks.
  • The SPC58EC80E5FMC1X has a range of security features, including secure boot, secure firmware updates, and cryptographic accelerators. To ensure these features are properly configured, refer to the device's datasheet and the STMicroelectronics' SPC58EC80E5FMC1X security application note AN5340. It's also recommended to consult with STMicroelectronics' security experts and follow industry best practices for secure system design.
  • STMicroelectronics provides a range of development tools and software for the SPC58EC80E5FMC1X, including the SPC5-STUDIO development environment, the SPC5-IDE integrated development environment, and the SPC58EC80E5FMC1X evaluation board. Additionally, third-party tools and software, such as IAR Embedded Workbench and Keil µVision, are also supported.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC58EC80E5FMC1X Overview

Use the download button to access the SPC58EC80E5FMC1X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC58, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
