- Part Number SPFE240D25
- Manufacturer CRYDOM
- Pin Count 4
- Part Category Relay or Contactor
- Package Category Other

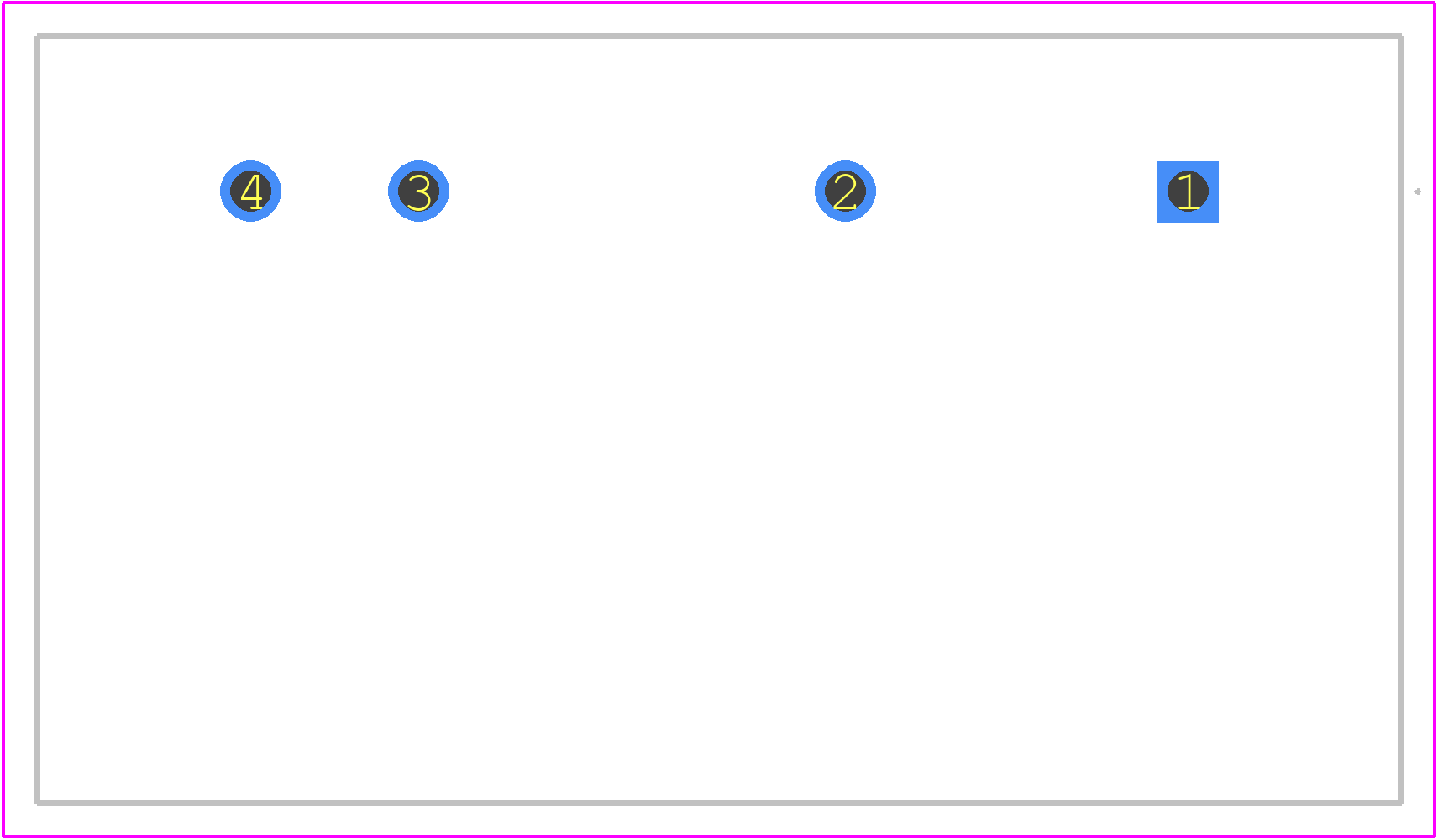

- Footprint Name Other - SPFE240D25-3
- Released Date Nov 11, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SPFE240D25 Details
-
Manufacturer Part Number:
SPFE240D25
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
SIP-4
-
HTS Code:
8541.40.95.00
-
Manufacturer:
Crydom Inc
-
Additional Feature:
UL APPROVED
-
Isolation Voltage-Max:
4000 V
-
Number of Elements:
1
-
On-State Current-Max:
10 A
-
Operating Temperature-Max:
80 °C
SPFE240D25 Frequently Asked Questions (FAQs)
-
The SPFE240D25 can handle surge currents up to 100A for 10ms, but it's recommended to derate the current to 80A for continuous operation.
-
To ensure reliability, it's essential to follow the recommended thermal management guidelines, including providing adequate heat sinking and airflow, and derating the current according to the temperature derating curve.
-
Yes, the SPFE240D25 is designed to withstand high-vibration environments, but it's recommended to follow the recommended mounting and screw torque guidelines to ensure reliable operation.
-
The recommended PCB layout and trace width for the SPFE240D25 can be found in the Crydom Inc application note AN-101, which provides guidelines for optimal thermal performance and EMI reduction.
-
It's recommended to use external overvoltage protection devices, such as TVS diodes or MOVs, and overcurrent protection devices, such as fuses or PTCs, to protect the SPFE240D25 from voltage and current transients.
Trust Checks
Community Provided
System Verified
Community Approved
SPFE240D25 Overview
Use the download button to access the SPFE240D25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPFE2,
or try a keyword search, such as Solid State Relays
