Tamura Corporation provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce electromagnetic interference, and prevent soldering issues.
The selection of input and output capacitors depends on the specific application, operating frequency, and desired performance. Tamura Corporation recommends using low-ESR capacitors with a voltage rating that meets or exceeds the maximum input voltage. A general guideline is to use 10uF to 22uF capacitors for the input and 10uF to 47uF capacitors for the output.
The SPM1203SJ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -20°C to +100°C for optimal performance.
Tamura Corporation recommends following the recommended soldering profile and PCB mounting guidelines to ensure proper soldering and mounting of the SPM1203SJ. This includes using a soldering iron with a temperature range of 250°C to 260°C, and applying a soldering flux to the PCB pads.
The SPM1203SJ is a high-frequency, low-loss power inductor suitable for various applications, including DC-DC converters, power supplies, audio equipment, and telecommunications devices. It's commonly used in high-current, high-frequency circuits where low power loss and high efficiency are critical.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SPM1203SJ Overview

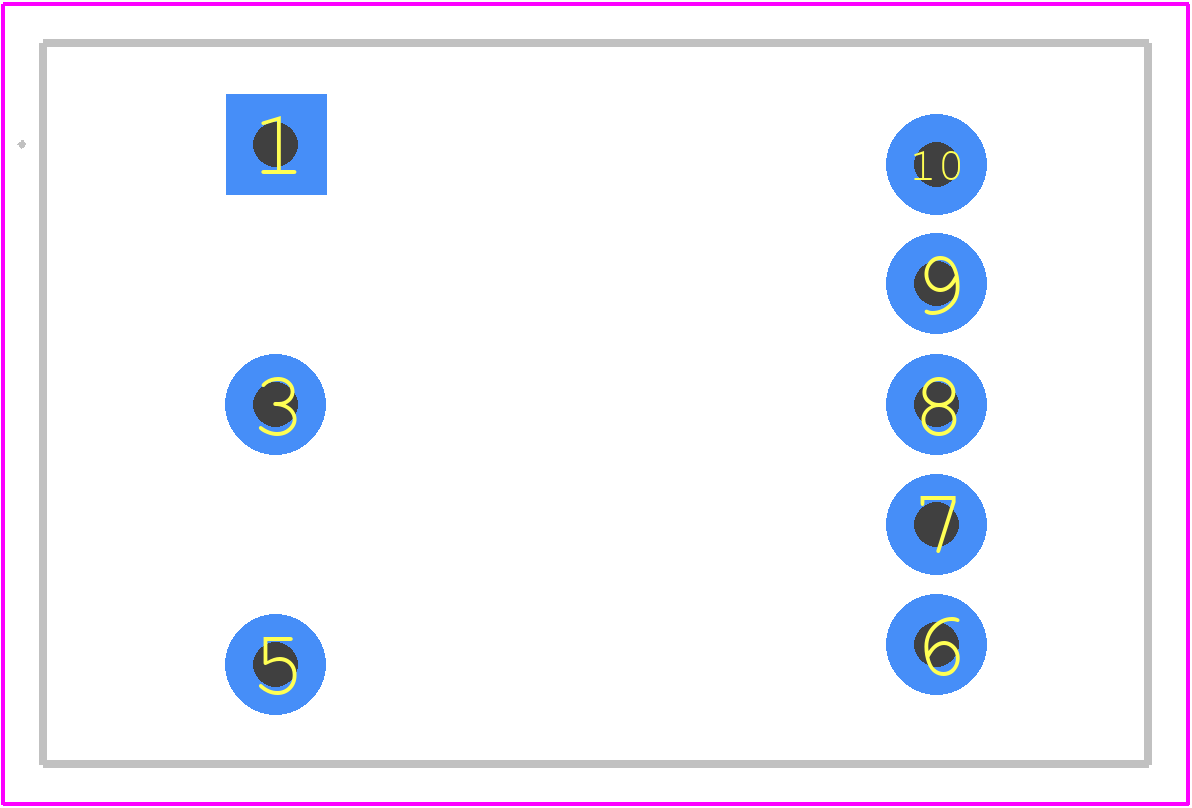

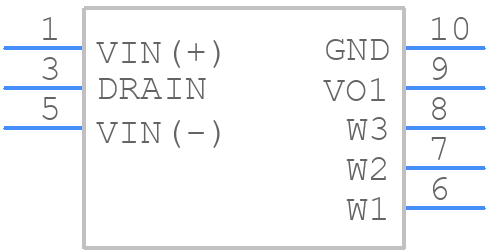

Use the download button to access the SPM1203SJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPM12,
or try a keyword search, such as Power Supply Modules
