SPM5030T-5R6M-HZ - TDK

SPM5030T-5R6M-HZ Frequently Asked Questions (FAQs)

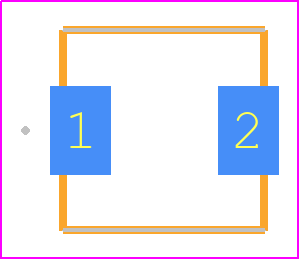

• What is the recommended land pattern for this component?
  The recommended land pattern for the SPM5030T-5R6M-HZ can be found in the TDK Corporation's application note or on their website. It is essential to follow the recommended land pattern to ensure proper mounting and to prevent damage to the component.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, it is recommended to handle the SPM5030T-5R6M-HZ by the edges, avoiding touching the terminals or the ceramic body. It is also essential to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
• What is the maximum allowable voltage derating for this component?
  The maximum allowable voltage derating for the SPM5030T-5R6M-HZ is typically 80% of the rated voltage. However, it is recommended to consult with TDK Corporation's application engineers or refer to their documentation for specific derating guidelines.
• Can I use this component in a high-temperature environment?
  The SPM5030T-5R6M-HZ is rated for operation up to 125°C. However, it is essential to consider the component's power dissipation and thermal resistance when operating in high-temperature environments. Consult with TDK Corporation's application engineers or refer to their documentation for specific guidance.
• What is the recommended soldering profile for this component?
  The recommended soldering profile for the SPM5030T-5R6M-HZ can be found in the TDK Corporation's application note or on their website. It is essential to follow the recommended soldering profile to prevent damage to the component.
