TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
Proper thermal management is crucial to ensure the reliability and performance of the SPM5030VT-R10M-D. TDK recommends using a thermal pad or heat sink, and ensuring good airflow around the component. The datasheet provides thermal resistance and maximum operating temperature ratings to help with thermal design.
While the datasheet provides a rated current, the maximum allowable DC current depends on the specific application and operating conditions. TDK recommends derating the current based on the ambient temperature, and considering the inductor's temperature rise and saturation characteristics.
TDK provides a range of inductors with different characteristics, such as inductance, current rating, and package size. Engineers should consider factors like operating frequency, voltage, current, and physical constraints when selecting an inductor. TDK's application notes and selection guides can help with this process.
TDK's SPM5030VT-R10M-D is designed to meet high reliability standards, with a typical lifespan of 10-15 years or more, depending on the application and operating conditions. TDK provides reliability data and guidelines for ensuring the inductor's long-term performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SPM5030VT-R10M-D Overview

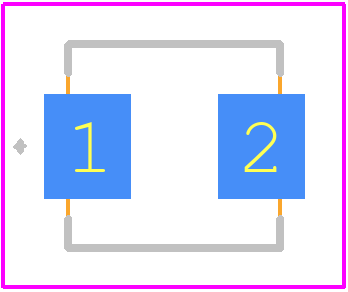

Use the download button to access the SPM5030VT-R10M-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPM50,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
