SPT 16/1-V-10.00 - Phoenix Contact

Description: PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: SPT 16/..-V, pitch: 10 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.1 mm, number of solder pins per potential: 6, type of packaging: packed in cardboard. The rated data refers to the

Download SPT 16/1-V-10.00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

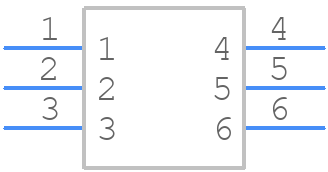

SPT 16/1-V-10.00 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

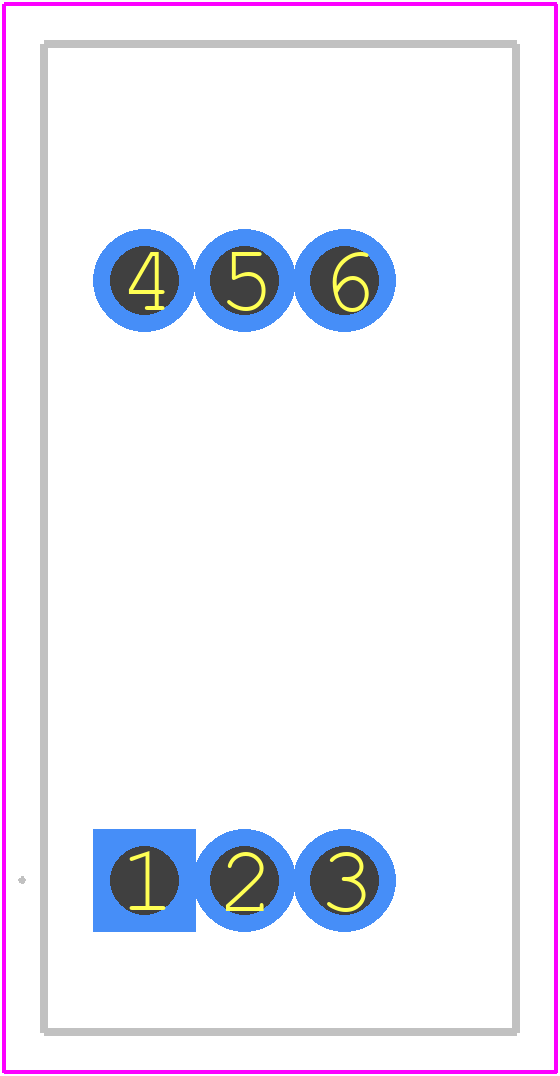

SPT 16/1-V-10.00 - Phoenix Contact PCB footprint - Other - Other - SPT 16/1-V-10.00-1
click to zoom
3D Models
SPT 16/1-V-10.00 - Phoenix Contact - 3D model - Other - SPT 16/1-V-10.00-1
click to zoom

SPT 16/1-V-10.00 Details

  • Manufacturer Part Number:

    SPT 16/1-V-10.00

  • Manufacturer:

    Phoenix Contact

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPT 16/1-V-10.00 Overview

Use the download button to access the SPT 16/1-V-10.00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPT 1, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
