Part Image

SPV1050TTR - STMicroelectronics

Description: STMICROELECTRONICS - SPV1050TTR - BATT CHARGER, LITHIUM, 0.07A, VFQFPN-20

Download SPV1050TTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

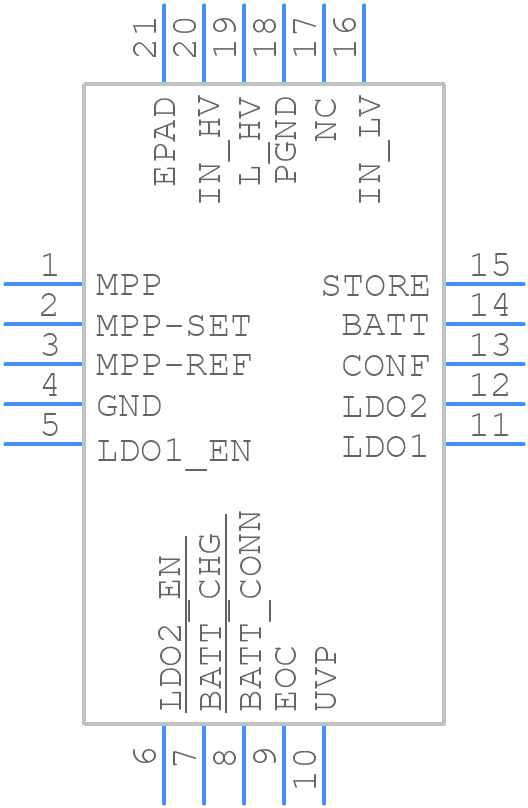

Symbol
SPV1050TTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPV1050TTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN-1
click to zoom
3D Models
SPV1050TTR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN-1
click to zoom

SPV1050TTR Details

  • Manufacturer Part Number:

    SPV1050TTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    70 mA

  • Supply Voltage-Max (Vsup):

    5.3 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.8V

  • Width:

    3 mm

SPV1050TTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the SPV1050TTR involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the device. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum input voltage that the SPV1050TTR can handle is 18V. Exceeding this voltage may damage the device.
  • The SPV1050TTR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's performance and to ensure proper thermal management in high-temperature applications.
  • To troubleshoot issues with the SPV1050TTR, check the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating or physical damage. Consult the datasheet and application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPV1050TTR Overview

Use the download button to access the SPV1050TTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPV10, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
