SQ1912AEEH-T1_GE3 - Vishay

Description: MOSFET N Ch 20Vds 12Vgs AEC-Q101 Qualified

Download SQ1912AEEH-T1_GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

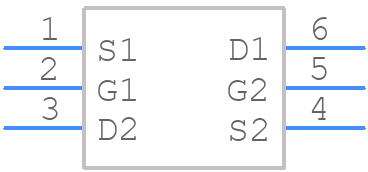

Symbol
SQ1912AEEH-T1_GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SQ1912AEEH-T1_GE3 - Vishay PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SC-70 6 LEADS
click to zoom
3D Models
SQ1912AEEH-T1_GE3 - Vishay - 3D model - SOT23 (6-Pin) - SC-70 6 LEADS
click to zoom

SQ1912AEEH-T1_GE3 Details

  • Manufacturer Part Number:

    SQ1912AEEH-T1_GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-70, SOT-363, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.9

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.8 A

  • Drain-source On Resistance-Max:

    0.28 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    12 pF

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1.5 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

SQ1912AEEH-T1_GE3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for SQ1912AEEH-T1_GE3 can be found in the Vishay Intertechnologies' application note 'Land Pattern Recommendations for Vishay Resistors' (document number: 31011).
  • For thermal considerations, ensure a minimum of 1.5 mm clearance around the component to allow for adequate heat dissipation. Also, consider using a thermal pad or heat sink to improve heat dissipation, especially in high-power applications.
  • The SQ1912AEEH-T1_GE3 has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.
  • While SQ1912AEEH-T1_GE3 is a high-precision resistor, it's not specifically designed for high-frequency applications. For frequencies above 100 kHz, consider using a resistor with a higher frequency rating, such as Vishay's HF series.
  • Follow the standard reflow soldering profile recommended by IPC/J-STD-020, with a peak temperature of 260°C (500°F) and a dwell time of 20-40 seconds. Ensure the component is within the recommended operating temperature range during soldering.
