SQJ912AEP-T2_BE3 - Vishay

Description: MOSFET DUAL N-CH 40V (D-S)

Download SQJ912AEP-T2_BE3 Model

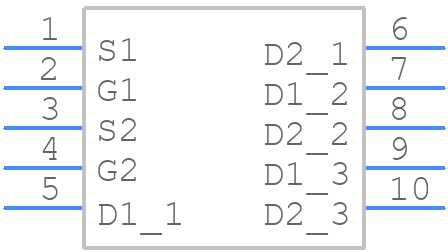

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SQJ912AEP-T2_BE3 - Vishay PCB footprint - Other - Other - SQJ968EP-T1_GE3-1
click to zoom
3D Models
SQJ912AEP-T2_BE3 - Vishay  - 3D model - Other - SQJ968EP-T1_GE3-1
click to zoom

SQJ912AEP-T2_BE3 Details

  • Manufacturer Part Number:

    SQJ912AEP-T2_BE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SO-8L, 4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    34 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.0093 Ω

  • FET Technology:

    TRENCH MOSFET

  • Feedback Cap-Max (Crss):

    114 pF

  • JESD-30 Code:

    R-PSSO-G4

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    120 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    52 ns

  • Turn-on Time-Max (ton):

    29 ns

SQJ912AEP-T2_BE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SQJ912AEP-T2_BE3 is a standard SOT-23 package with a 1.3 mm x 0.8 mm body size. A minimum pad size of 0.5 mm x 0.5 mm is recommended for reliable soldering.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the component. Avoid using excessive solder or flux, as it can cause shorts or damage to the component.
  • The SQJ912AEP-T2_BE3 has an operating temperature range of -55°C to 150°C. However, it's recommended to operate the device within the -40°C to 125°C range for optimal performance and reliability.
  • Yes, the SQJ912AEP-T2_BE3 is suitable for high-reliability applications due to its rugged construction and high-quality materials. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the component meets the required reliability standards.
  • The SQJ912AEP-T2_BE3 has an internal ESD protection diode, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded to prevent static damage.
