SQJB00EP-T1_GE3 - Vishay

Description: MOSFET N-Ch 60V Vds AEC-Q101 Qualified

Download SQJB00EP-T1_GE3 Model

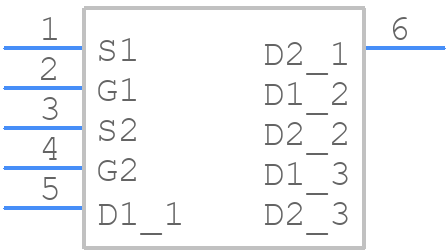

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SQJB00EP-T1_GE3 - Vishay PCB footprint - Other - Other - PowerPAK SO-8L Dual_2022
click to zoom
3D Models
SQJB00EP-T1_GE3 - Vishay  - 3D model - Other - PowerPAK SO-8L Dual_2022
click to zoom

SQJB00EP-T1_GE3 Details

  • Manufacturer Part Number:

    SQJB00EP-T1_GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8L, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    26.5 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.013 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    40 pF

  • JESD-30 Code:

    R-PSSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    84 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    80 ns

  • Turn-on Time-Max (ton):

    35 ns
